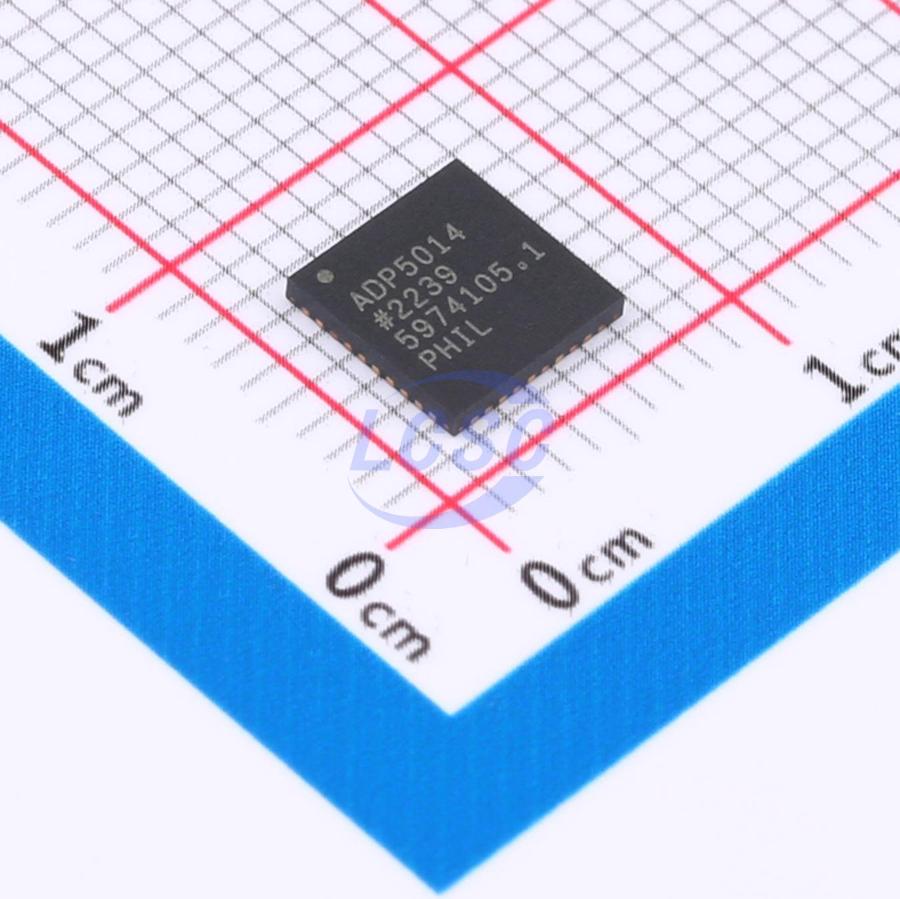

ADP5014ACPZ-R7

The ADP5014 combines four high performance, low noise buck regulators in a 40-lead LFCSP package. Relying on its low output noise (~25 μV rms when VoUT ≤ VREF), the low noise buck regulator enables the powering up of the noise sensitive signal chain products. All channels in the ADP5014 integrate high-side and low-side power metal-oxide semiconductor field effect transistors (MOSFET). Channel 1 and Channel 2 deliver a programmable output current of 2 A or 4 A. Combining Channel 1 and Channel 2 in a parallel configuration provides a single output with up to 8 A of current. Channel 3 and Channel 4 deliver a programmable output current of 1 A or 2 A. Combining Channel 3 and Channel 4 in a parallel configuration can provide a single output with up to 4 A of current.

Applications

• RF transceiver, high speed analog-to-digital converter (ADC)/digital-to-analog converter (DAC), mixed signal ASIC
• FPGA and processor applications
• Security and surveillance
• Medical applications

Key features

• Input voltage range: 2.75 V to 6.0 V
• Programmable output voltage range: 0.5 V to 0.9×PVINx
• Low output noise: ~25 μV rms when ∀our ≤ VREF
• ±1.0% output accuracy over full temperature range
• 500 kHz to 2.5 MHz adjustable switching frequency
• Power regulation
• Channel 1 and Channel 2: programmable 2 A/4 A sync
• Channel 3 and Channel 4: programmable 1 A/2 A sync
• buck regulators, or single 4 A output in parallel
• Flexible parallel operation
• Precision enable with 0.6 V threshold
• Manual or sequence mode for power-up and power-down
• Selective FPWM or PSM operation mode
• Precision undervoltage comparator
• Frequency synchronization input or output
• Active output discharge switch
• Power-good flag on selective channels via factory fuse
• UVLO, OVP, OCP, and TSD protection
• 40-lead, 6 mm×6 mm LFCSP package
• -40°C to +125°C junction temperature
