AGMSEMIDatasheet (PDF)

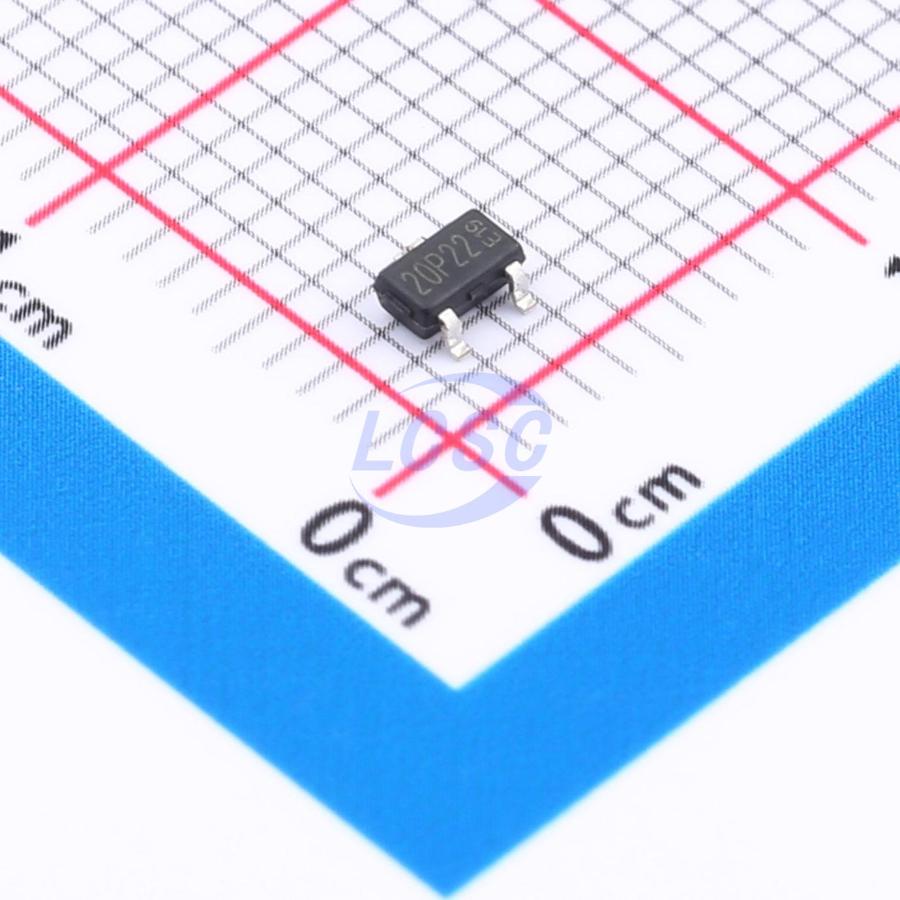

AGM20P22E
P-Channel 20V 6.2A 1.7W Surface Mount SOT-23-3
SOT-23-3RoHSActive
MOSFET P-CH 20V 6.2A SOT-23-3
- Manufacturer
- AGMSEMI
- Manufacturer part #
- AGM20P22E
- Store part #
- C19633866
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C19633866
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.33 | ₹93.30 |
| 100+ | ₹7.45 | ₹745.00 |
| 300+ | ₹6.51 | ₹1,953.00 |
| 3,000+ | ₹5.81 | ₹17,430.00 |
| 6,000+ | ₹5.24 | ₹31,440.00 |
| 9,000+ | ₹4.96 | ₹44,640.00 |
10 × ₹9.33
₹93.30
excl. GST
₹110.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AGM20P22E
₹93.30 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 141pF
- Current - Continuous Drain(Id)
- 6.2A
- Ciss-Input Capacitance
- 959pF
- Pd - Power Dissipation
- 1.7W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 24mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 28.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.021 g
Overview
The AGM20P22E combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON). This device is ideal for load switch and battery protection applications.
Applications
- MB/VGA Vcore
- SMPS 2nd Synchronous Rectifier
- POL application
- BLDC Motor driver
Key features
- Advance high cell density Trench technology
- Low RDS(ON) to minimize conductive loss
- Low Gate Charge for fast switching
- Low Thermal resistance
- 100% DVDS tested
