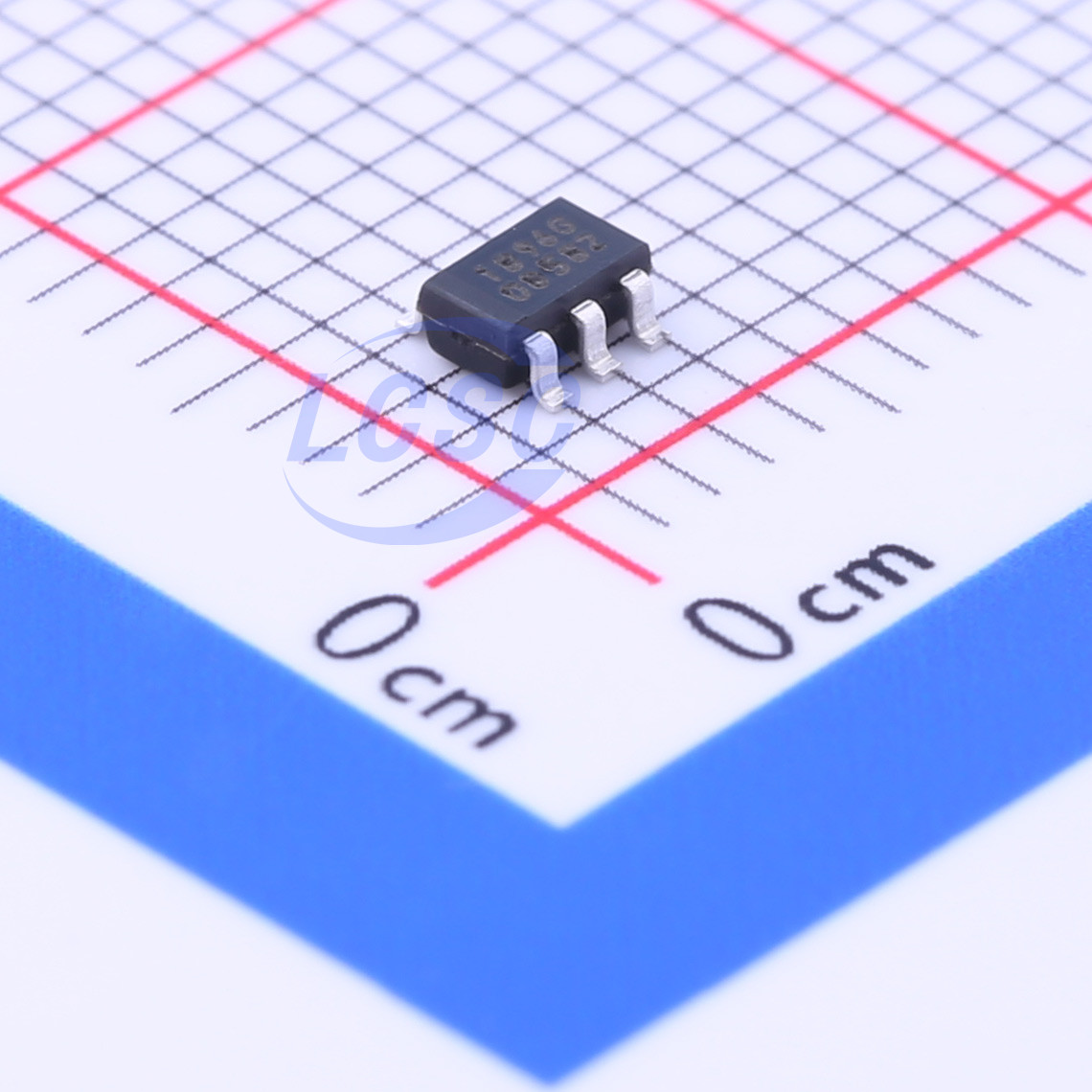

AIC1896GGTR
1.4MHz Boost Adjustable 30V 200mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
1.4MHz High Efficiency Boost DC/DC Converter
- Manufacturer
- AIC
- Manufacturer part #
- AIC1896GGTR
- Store part #
- C10818
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C10818
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.61 | ₹273.05 |
| 50+ | ₹43.55 | ₹2,177.50 |
| 150+ | ₹39.00 | ₹5,850.00 |
| 500+ | ₹33.15 | ₹16,575.00 |
| 3,000+ | ₹30.56 | ₹91,680.00 |
| 6,000+ | ₹28.83 | ₹1,72,980.00 |
5 × ₹54.61
₹273.05
excl. GST
₹322.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AIC1896GGTR
₹273.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.4MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable soft-start
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~10V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 30V
- Output Current
- 200mA
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
A current-mode pulse-width modulation (PWM), step-up DC/DC Converter. The built-in high voltage N-channel MOSFET allows for step-up applications with up to 30V output voltage, as well as for Single Ended Primary Inductance Converter (SEPIC) and other low-side switching DC/DC converter. The high switching frequency (1.4MHz) allows the use of small external components. The Soft-Start function is programmable with an external capacitor, which sets the input current ramp rate. Available in a space-saving SOT-23-6 and TSOT-23-6 package.
Applications
- White LED Backlight.
- OLED Driver.
- LCD Bias
Key features
- Fixed Frequency 1.4MHz Current-Mode PWM Operation.
- Adjustable Output Voltage up to 30V.
- Guaranteed 13V/ 200mA Output with 5V Input.
- 2.5V to 10V Input Range.
- Maximum 0.1μA Shutdown Current.
- Programmable Soft-Start.
- Tiny Inductor and Capacitors are allowed.
- Space-Saving SOT-23-6 and TSOT-23-6 Package.
