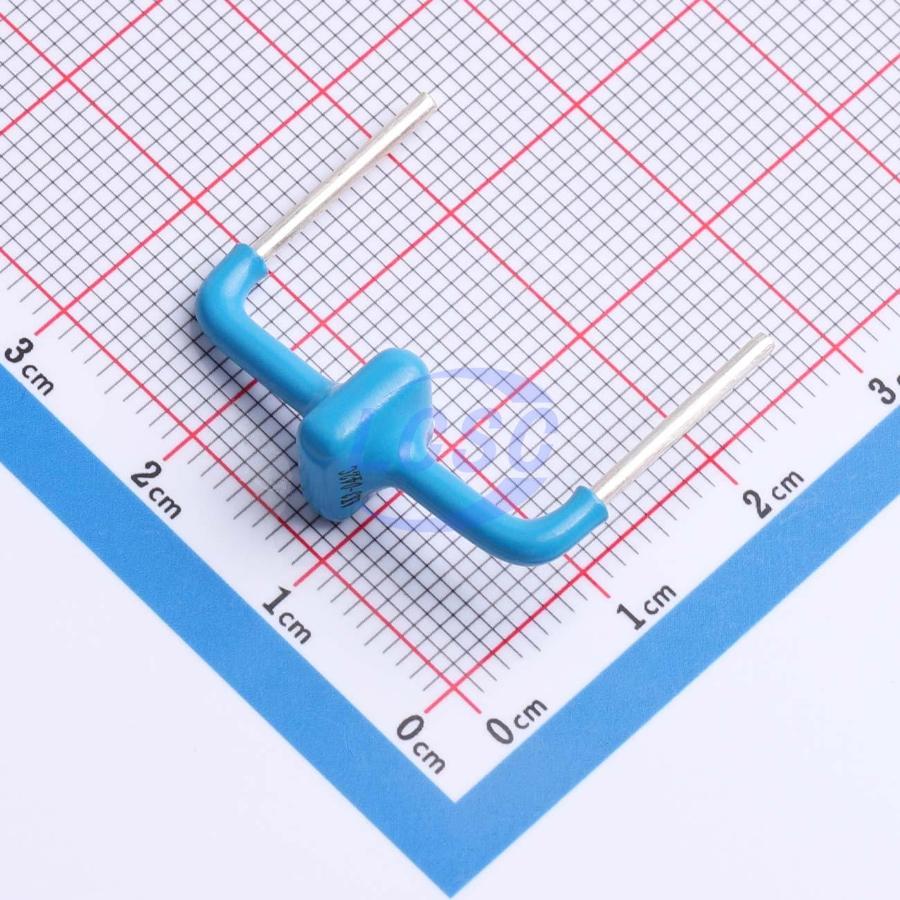

AK3-042C-BC
77V 3kA@8/20us 52V Bidirectional 42V BPSS TVS Diodes RoHS
- Manufacturer
- baocheng
- Manufacturer part #
- AK3-042C-BC
- Store part #
- C51043151
- Package / case
- BPSS
- Category
- TVS Diodes
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C51043151
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹185.55 | ₹185.55 |
| 10+ | ₹181.20 | ₹1,812.00 |
| 56+ | ₹178.37 | ₹9,988.72 |
| 112+ | ₹175.54 | ₹19,660.48 |
1 × ₹185.55
₹185.55
excl. GST
₹218.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 56 per box
AK3-042C-BC
₹185.55 for 1 + GST
Specifications
- Clamping Voltage
- 77V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3kA@8/20us
- Voltage - Breakdown
- 52V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 42V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Box-packed
- Standard pack
- 56 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
The AK3 series high-power transient voltage suppression (TVS) diodes are designed to meet the demanding surge test environments of AC and DC line protection applications. Compared to conventional metal oxide varistor (MOV) solutions, they offer significantly faster response times and lower clamping voltages. These diodes can be connected in series and/or parallel to provide very high surge current protection solutions.
Key features
- Ultra-low clamping voltage
- Ultra-compact: footprint less than one-tenth of traditional discrete solutions
- Steep breakdown voltage
- Low slope resistance
- Bidirectional
- Excellent clamping factor with foldback technology
- Symmetrical lead width for easy soldering during assembly
- IEC-61000-4-2 compliant ESD protection: 15kV (air discharge), 8kV (contact discharge)
- Data line ESD protection per IEC 61000-4-2
- Data line EFT protection per IEC 61000-4-4
- Halogen-free
- RoHS compliant
- Glass passivated junction
- Lead-free E4 denotes second-level interconnect is lead-free with silver terminal finish
