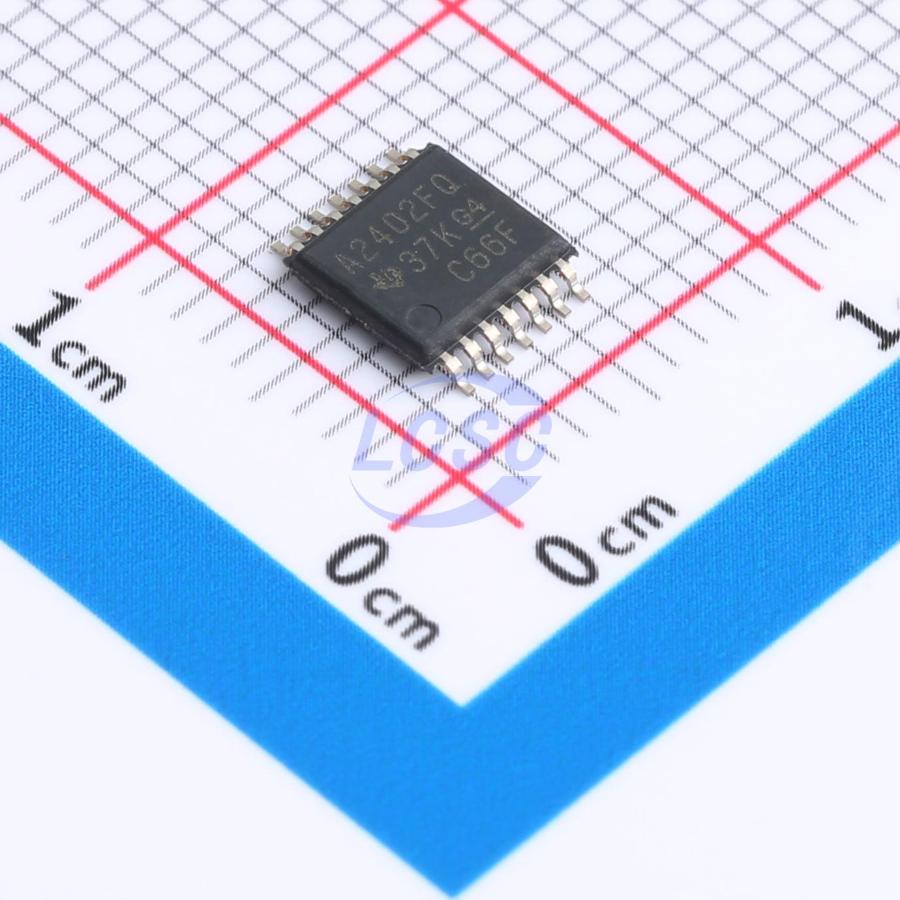

ALM2402FQPWPRQ1

Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Output HTSSOP-14

HTSSOP-14ROHS3 CompliantActive

Automotive dual operational amplifier with high current output for resolver excitation

Manufacturer: TI
Manufacturer part #: ALM2402FQPWPRQ1
Store part #: C1849226
Package / case: HTSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,252 in stock

#C1849226

Stock & price checked 15 days ago

Quantity	Unit price	Pack price
1+	₹589.28	₹589.28
10+	₹504.66	₹5,046.60
30+	₹454.64	₹13,639.20
100+	₹403.95	₹40,395.00
500+	₹380.46	₹1,90,230.00
1,000+	₹369.79	₹3,69,790.00

Quantity (min 1)

1 × ₹589.28

₹589.28

excl. GST

₹695.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

ALM2402FQPWPRQ1

₹589.28 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 400mA
Number of Channels: 2
Vos - Input Offset Voltage: 1mV
Slew Rate: 3.4V/us
Input Offset Current(Ios): 2nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 97dB
Ib - Input Bias Current: 3.5nA
Input Offset Voltage Drift(Vos TC): 65uV/℃
Quiescent Current: 4.5mA
Gain Bandwidth Product: 2MHz
Features: Enable/shutdown function;EMI filtering/RF suppression
Input Voltage Noise Density: 115nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.1 g

Overview
