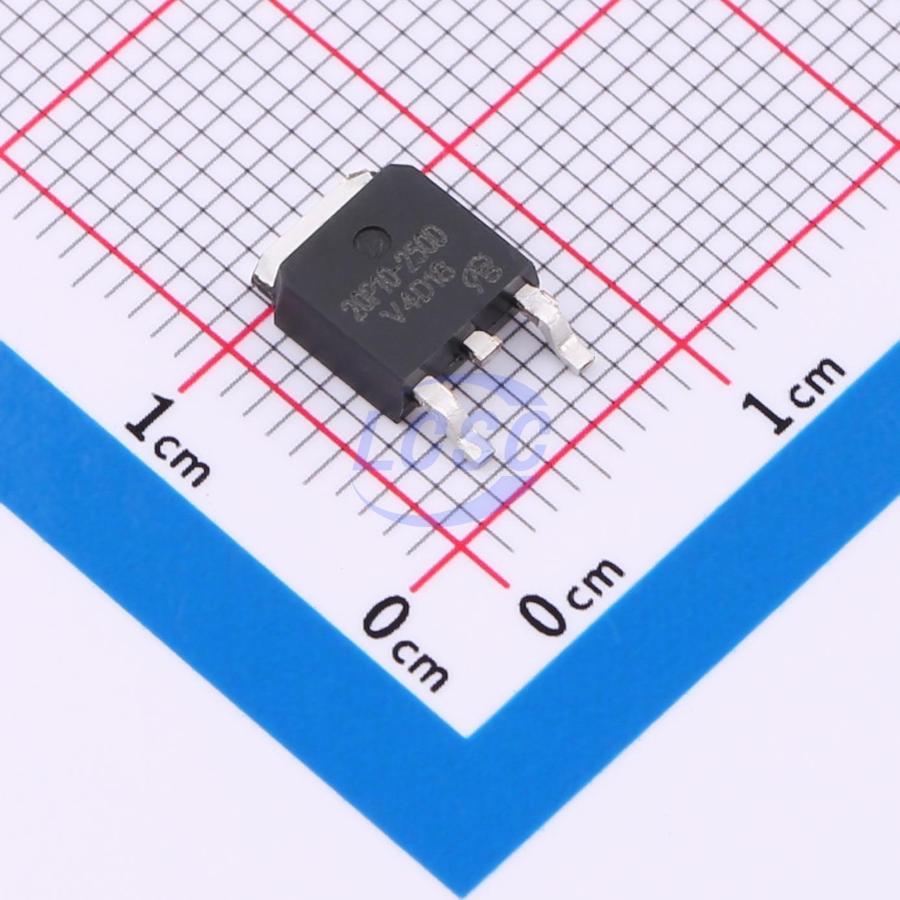

AM20P10-250D-T1-PF-VB
P-Channel 100V 16A 32.1W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 100V 16A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AM20P10-250D-T1-PF-VB
- Store part #
- C22389345
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22389345
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.00 | ₹123.00 |
| 10+ | ₹102.32 | ₹1,023.20 |
| 30+ | ₹91.87 | ₹2,756.10 |
| 100+ | ₹81.64 | ₹8,164.00 |
| 500+ | ₹63.36 | ₹31,680.00 |
| 1,000+ | ₹60.30 | ₹60,300.00 |
1 × ₹123.00
₹123.00
excl. GST
₹145.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AM20P10-250D-T1-PF-VB
₹123.00 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 65pF
- Current - Continuous Drain(Id)
- 16A
- Ciss-Input Capacitance
- 1.055nF
- Pd - Power Dissipation
- 32.1W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 100mΩ@10V;120mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23.2nC@10V;11.7nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.44 g
Overview
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RU1HL13L-VB#C18212526VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹108.38 · 8 in stock | View |
 | UTT25P10L-TN3-R-VB#C19188272VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 42 | ₹130.41 · 42 in stock | View |
 | ST13P10-VB#C19711373VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹102.93 · 1 in stock | View |
 | SPD15P10PG-VB#C20755197VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹137.78 · 40 in stock | View |
 | AUIRFR5410TRR-VB#C20755470VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 3 | ₹134.10 · 3 in stock | View |
