VBsemi ElecDatasheet (PDF)

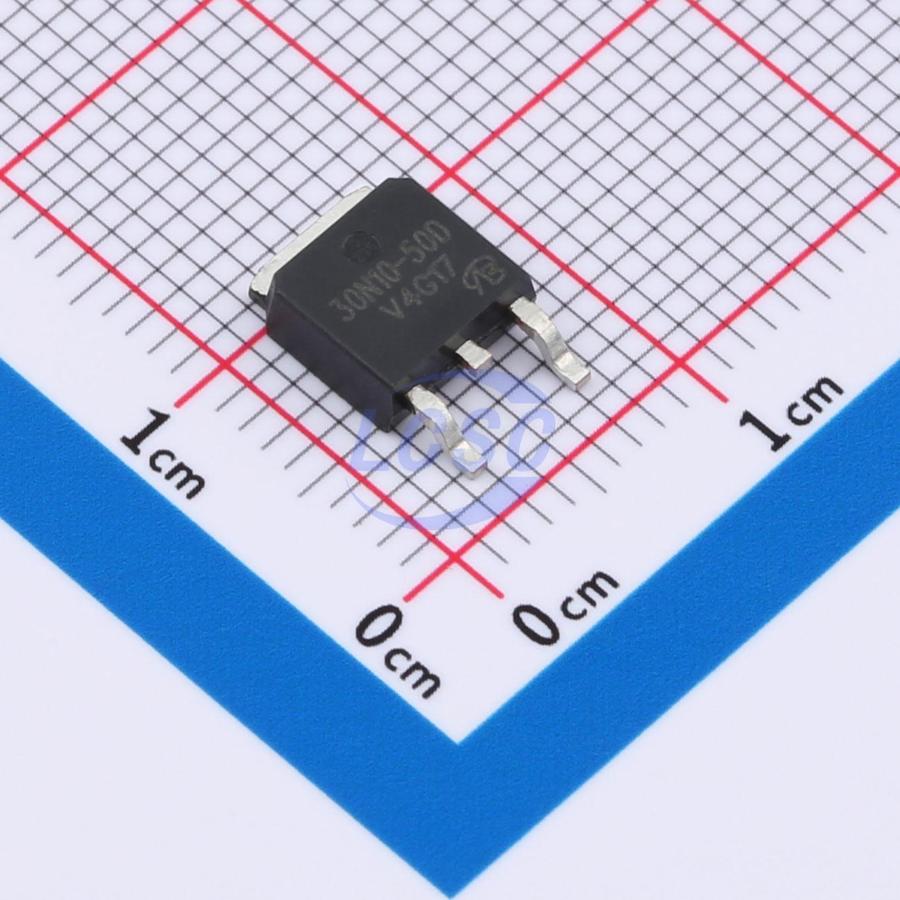

AM30N10-50D-T1-PF-VB
N-Channel 100V 40A 107W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 40A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AM30N10-50D-T1-PF-VB
- Store part #
- C29778796
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C29778796
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.93 | ₹102.93 |
| 10+ | ₹82.98 | ₹829.80 |
| 30+ | ₹72.90 | ₹2,187.00 |
| 100+ | ₹63.03 | ₹6,303.00 |
| 500+ | ₹56.93 | ₹28,465.00 |
| 1,000+ | ₹53.99 | ₹53,990.00 |
1 × ₹102.93
₹102.93
excl. GST
₹121.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AM30N10-50D-T1-PF-VB
₹102.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 290pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 2.6nF
- Pd - Power Dissipation
- 107W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 30mΩ@10V;35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.45 g
Overview
Applications
- Direct logic-level interface: TTL/CMOS
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
- Battery-powered systems
- Solid-state relays
Key features
- Trench power MOSFET
- 175°C junction temperature
- Low thermal resistance package
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 40N10 TO252-VB#C19626786VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 35 | ₹107.14 · 35 in stock | View |
 | FDD3690-VB#C29779380VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹102.93 · 15 in stock | View |
 | 30N10-VB#C3040291VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 26 | ₹139.99 · 26 in stock | View |
 | 2SK3483-Z-E1-AZ-VB#C5441212VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹105.87 · 30 in stock | View |
 | BUK9240-100A-VB#C18212451VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 35 | ₹108.38 · 35 in stock | View |
