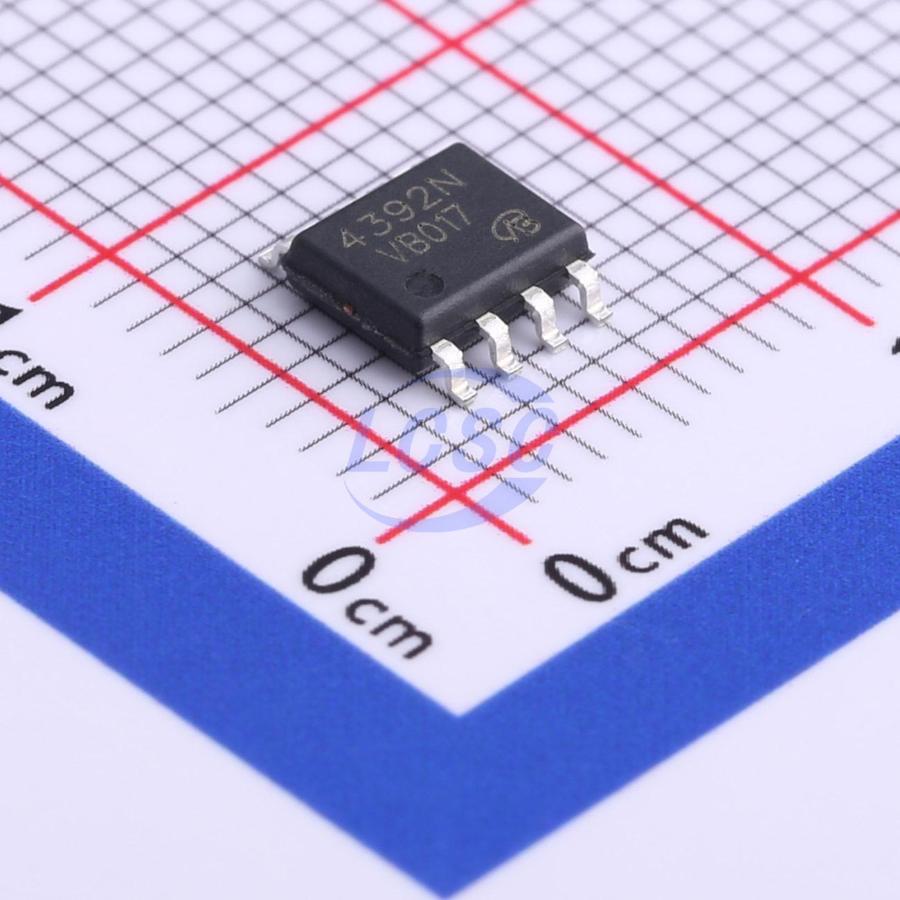

AM4392N-T1-VB
N-Channel 200V 3A 96W Surface Mount SO-8
SO-8RoHSSold out at source
MOSFET N-CH 200V 3A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AM4392N-T1-VB
- Store part #
- C693374
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C693374
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.62 | ₹79.62 |
| 10+ | ₹63.86 | ₹638.60 |
| 30+ | ₹57.35 | ₹1,720.50 |
| 100+ | ₹48.95 | ₹4,895.00 |
| 500+ | ₹40.13 | ₹20,065.00 |
| 1,000+ | ₹37.81 | ₹37,810.00 |
1 × ₹79.62
₹79.62
excl. GST
₹93.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AM4392N-T1-VB
₹79.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 3A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 260mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.142 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- PWM optimized
- 100% Rg tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7453TRPBF-VB#C18212484VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 43 | ₹81.67 · 43 in stock | View |
 | SI4462DY-T1-E3-VB#C18795038VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 9 | ₹76.51 · 9 in stock | View |
 | SI9422DY-T1-E3-VB#C19711353VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 1 | ₹75.62 · 1 in stock | View |
 | PSMN165-200K-VB#C20417753VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹75.62 · 50 in stock | View |
 | VBA1203M#C480924VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 830 | ₹56.07 · 830 in stock | View |
