HXY MOSFETDatasheet (PDF)

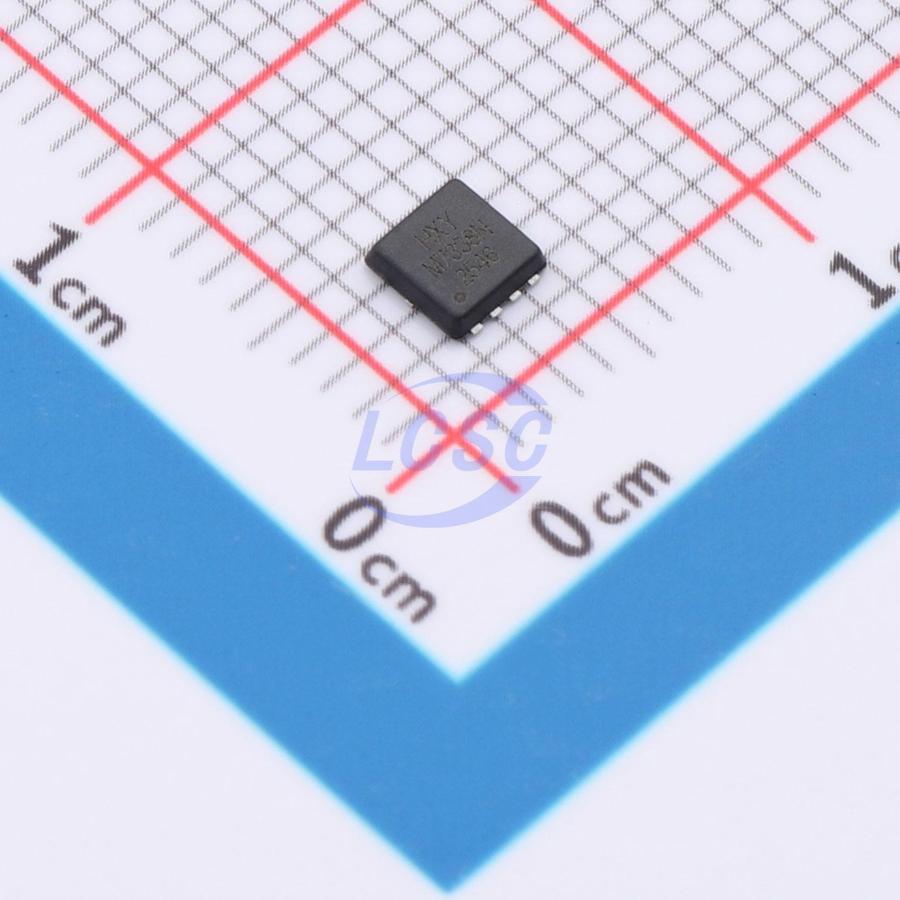

AM7338N-HXY
30W 30V 40A 5mΩ@10V 1 N-channel N-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AM7338N-HXY
- Store part #
- C53263140
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C53263140
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.85 | ₹239.25 |
| 50+ | ₹38.33 | ₹1,916.50 |
| 150+ | ₹34.24 | ₹5,136.00 |
| 500+ | ₹29.15 | ₹14,575.00 |
| 2,500+ | ₹26.88 | ₹67,200.00 |
| 5,000+ | ₹25.52 | ₹1,27,600.00 |
5 × ₹47.85
₹239.25
excl. GST
₹282.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AM7338N-HXY
₹239.25 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 498pF
- Ciss-Input Capacitance
- 814pF
- Pd - Power Dissipation
- 30W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 40A
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.076 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSZ065N03LSATMA1-HXY#C51949292HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 46 | ₹59.93 · 46 in stock | View |
 | SISA88DN-T1-GE3-HXY#C51949295HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 135 | ₹49.48 · 135 in stock | View |
 | SI7328DN-T1-GE3-HXY#C51949310HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 147 | ₹219.92 · 147 in stock | View |
 | ISZ065N03L5SATMA1-HXY#C53263000HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 96 | ₹63.15 · 96 in stock | View |
 | CSD17552Q3A-HXY#C53263012HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 96 | ₹76.23 · 96 in stock | View |
