YLPTEC

AMDGT-241509DA50JZ

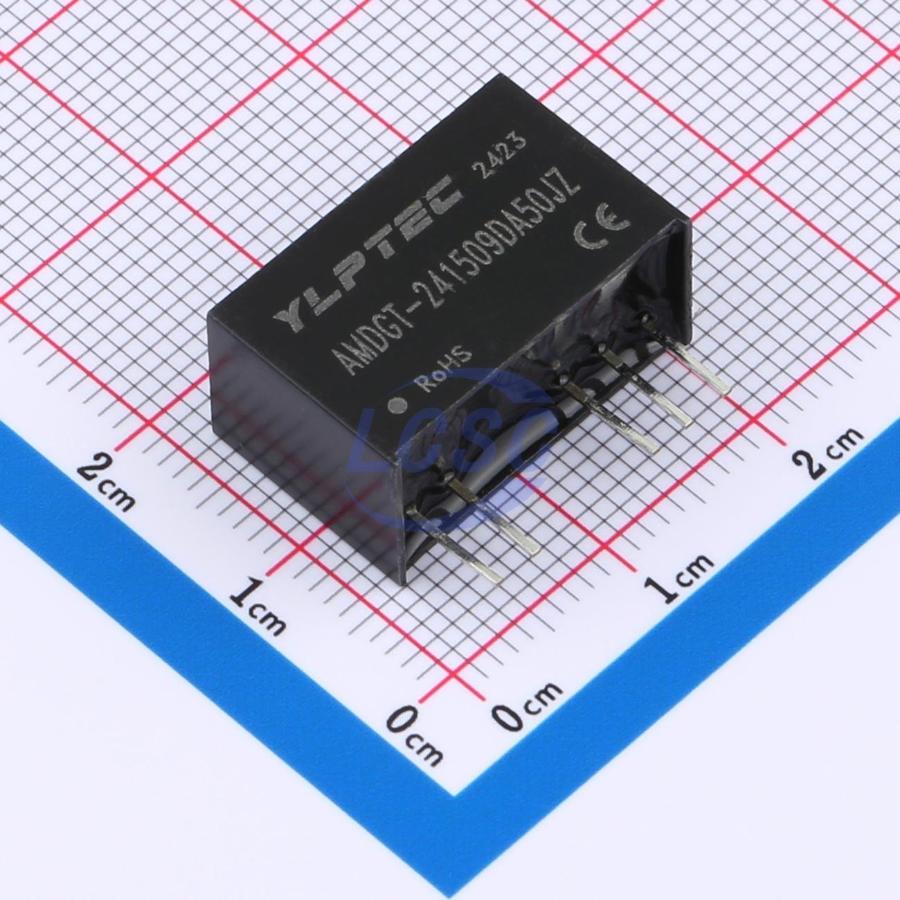

Isolated Module DC DC Converter 2 Output +15V -9V +100mA -100mA 21.6V~26.4V Input

SIP,19.5x9.8mmRoHSActive

Dedicated DC/DC modular power supply for IGBT drivers

Manufacturer: YLPTEC
Manufacturer part #: AMDGT-241509DA50JZ
Store part #: C22372498
Package / case: SIP,19.5x9.8mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C22372498

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹484.63	₹484.63
10+	₹411.92	₹4,119.20
25+	₹368.73	₹9,218.25
100+	₹325.11	₹32,511.00
500+	₹304.93	₹1,52,465.00
1,000+	₹295.81	₹2,95,810.00

Quantity (min 1)

1 × ₹484.63

₹484.63

excl. GST

₹571.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 25 per tube

AMDGT-241509DA50JZ

₹484.63 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: +15V;-9V
Ripple Noise: 50mVp-p
Operating Temperature: -40℃~+105℃
Voltage - Supply: 21.6V~26.4V
Capacitive Load(Max): 2200uF
Number of Outputs: 2
Iout: 100mA
Height: 12.5mm
Frequency - Switching: 200kHz
Isolation Voltage(Vrms): 5kV
Features: Short Circuit Protection;Automatic fault recovery
Conversion Efficiency: 82%
Output Power: 2W
Length: 19.5mm
Width: 9.8mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 5.1 g

Overview

The AMDGT-JZ series is a DC-DC module power supply specifically designed for IGBT drivers, featuring an asymmetric voltage output configuration internally to minimize IGBT drive losses. It also provides output short-circuit protection with auto-recovery capability.
