QA243-1509R3

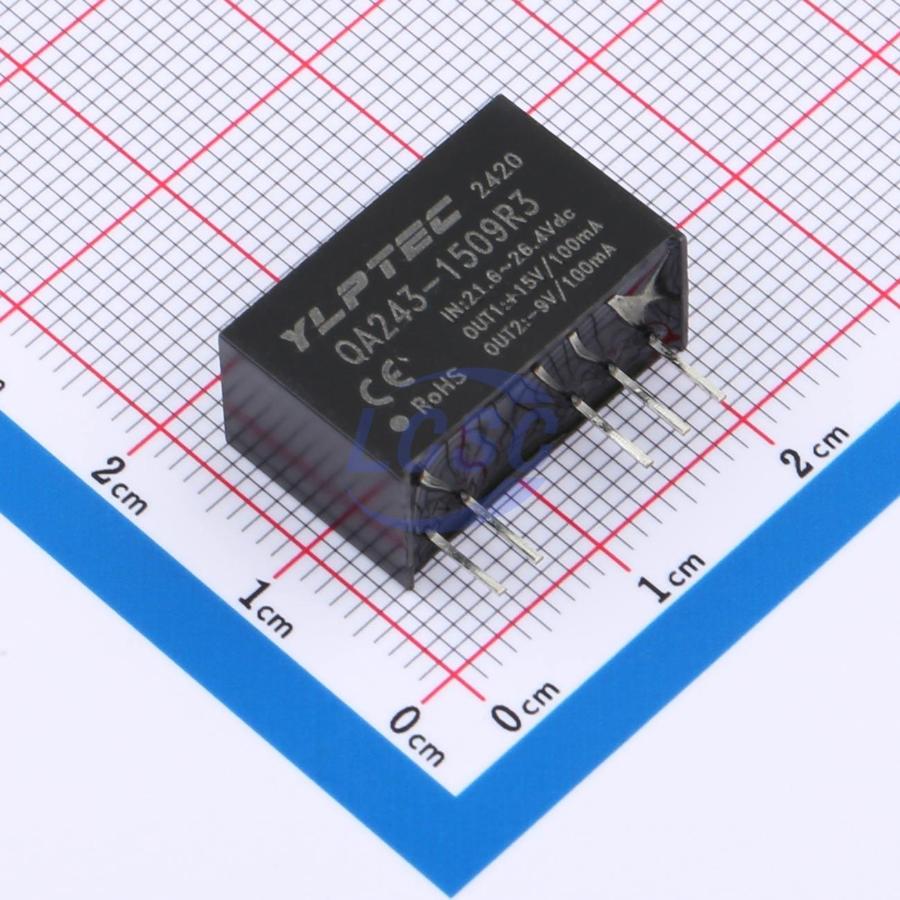

Isolated Module DC DC Converter 2 Output +15V -9V +100mA -100mA 21.6V~26.4V Input

SIP,19.5x9.8mmRoHSActive

Dedicated DC/DC module power supply for IGBT drivers

Manufacturer: YLPTEC
Manufacturer part #: QA243-1509R3
Store part #: C22749819
Package / case: SIP,19.5x9.8mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

Out of stock

#C22749819

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹411.70	₹411.70
10+	₹352.88	₹3,528.80
25+	₹316.21	₹7,905.25
100+	₹278.45	₹27,845.00
500+	₹261.31	₹1,30,655.00
1,000+	₹253.92	₹2,53,920.00

Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 25 per tube

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: +15V;-9V
Ripple Noise: 50mVp-p
Operating Temperature: -40℃~+105℃
Voltage - Supply: 21.6V~26.4V
Capacitive Load(Max): 2200uF
Number of Outputs: 2
Iout: 100mA
Height: 12.5mm
Frequency - Switching: 200kHz
Isolation Voltage(Vrms): 5kV
Features: Short Circuit Protection;Automatic fault recovery
Output Power: 2.4W
Conversion Efficiency: 82%
Length: 19.5mm
Width: 9.8mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 10.24 g

Overview

Applications

General-purpose inverters
AC servo drive systems
Welding machines
Uninterruptible power supplies (UPS)

Key features

Meets reinforced insulation requirements
Isolation voltage 5000VAC
Partial discharge 1700VCMTI >200kV/µs
Maximum capacitive load 2200µF
Efficiency up to 87%
Ultra-compact SIP package
Operating temperature range: -40°C to +105°C
Continuous short-circuit protection

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	AMDGT-241509DA50JZ#C22372498YLPTEC · SIP,19.5x9.8mm	YLPTEC	SIP,19.5x9.8mm	25	₹484.63 · 25 in stock	View
