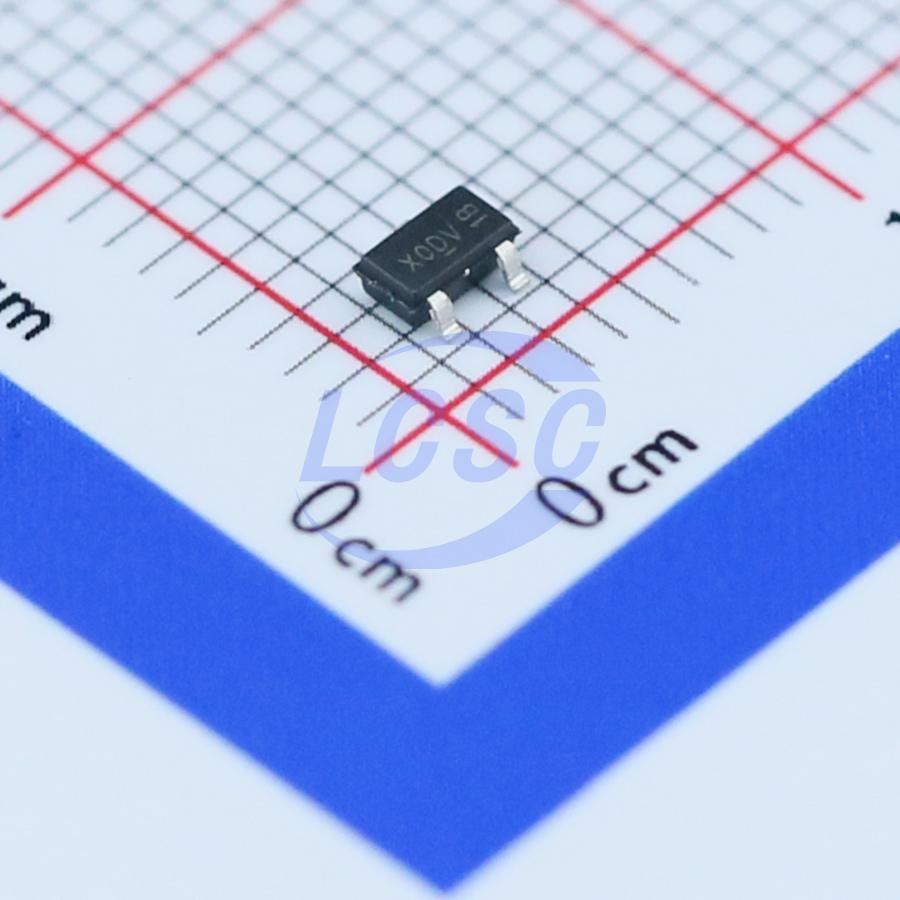

AO3400A
N-Channel 30V Surface Mount SOT-23-3L
PopularSOT-23ROHS3 CompliantActive
MOSFET N-CH 30V SOT-23-3L
- Manufacturer
- AOS
- Manufacturer part #
- AO3400A
- Store part #
- C20917
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,07,185 in stock
#C20917
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.88 | ₹59.40 |
| 50+ | ₹9.58 | ₹479.00 |
| 150+ | ₹8.39 | ₹1,258.50 |
| 500+ | ₹7.41 | ₹3,705.00 |
| 3,000+ | ₹7.06 | ₹21,180.00 |
| 6,000+ | ₹6.84 | ₹41,040.00 |
5 × ₹11.88
₹59.40
excl. GST
₹70.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO3400A
₹59.40 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 75pF
- Ciss-Input Capacitance
- 630pF
- Pd - Power Dissipation
- 1.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5.7A
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 48mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7nC@10V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.45V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.068 g
Overview
AO3400A combines advanced trench MOSFET technology with low-resistance packaging to achieve extremely low RDS(ON). This device is suitable for use as a load switch or in PWM applications.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FH3400B#C2929009XIN FEI HONG · SOT-23 | XIN FEI HONG | SOT-23 | 560 | ₹6.40 · 560 in stock | View |
 | AO3400#C181090Guangdong Hottech · SOT-23 | Guangdong Hottech | SOT-23 | 4,26,600 | ₹4.17 · 4,26,600 in stock | View |
 | AO3400A#C48678023baocheng · SOT-23 | baocheng | SOT-23 | 18,740 | ₹3.88 · 18,740 in stock | View |
 | FH3400BL#C2929010XIN FEI HONG · SOT-23-3L | XIN FEI HONG | SOT-23-3L | 3,000 | ₹6.46 · 3,000 in stock | View |
 | AO3400#C2890121TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 2,060 | ₹7.46 · 2,060 in stock | View |
