MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
UMWDatasheet (PDF)

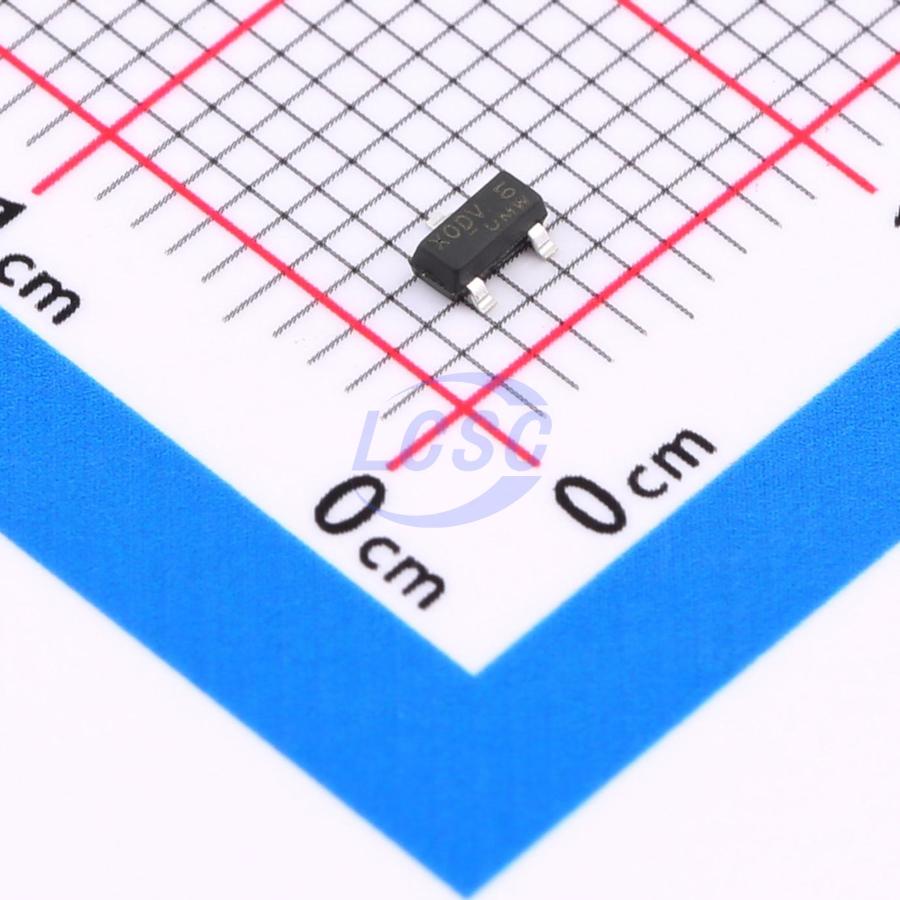

AO3400A
N-Channel 30V 5.8A 1.4W Surface Mount SOT-23
PopularSOT-23ROHS3 CompliantActive
MOSFET N-CH 30V 5.8A SOT-23
- Manufacturer
- UMW
- Manufacturer part #
- AO3400A
- Store part #
- C347475
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,04,320 in stock
#C347475
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.92 | ₹98.40 |
| 200+ | ₹3.64 | ₹728.00 |
| 600+ | ₹3.08 | ₹1,848.00 |
| 3,000+ | ₹2.59 | ₹7,770.00 |
| 9,000+ | ₹2.42 | ₹21,780.00 |
| 21,000+ | ₹2.32 | ₹48,720.00 |
20 × ₹4.92
₹98.40
excl. GST
₹116.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO3400A
₹98.40 for 20 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 99pF
- Current - Continuous Drain(Id)
- 5.8A
- Ciss-Input Capacitance
- 823pF
- Pd - Power Dissipation
- 1.4W
- Reverse Transfer Capacitance (Crss)
- 77pF
- RDS(on)
- 17mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.7nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.017 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO3480A(UMW)#C5346820UMW · SOT-23 | UMW | SOT-23 | 2,100 | ₹5.48 · 2,100 in stock | View |
 | AO3404A#C347497UMW · SOT-23 | UMW | SOT-23 | 39,400 | ₹5.23 · 39,400 in stock | View |
 | IRLML0030TR(UMW)#C5271200UMW · SOT-23 | UMW | SOT-23 | 780 | ₹5.17 · 780 in stock | View |
 | SI2318A#C2681218UMW · SOT-23 | UMW | SOT-23 | 2,18,840 | ₹6.51 · 2,18,840 in stock | View |
