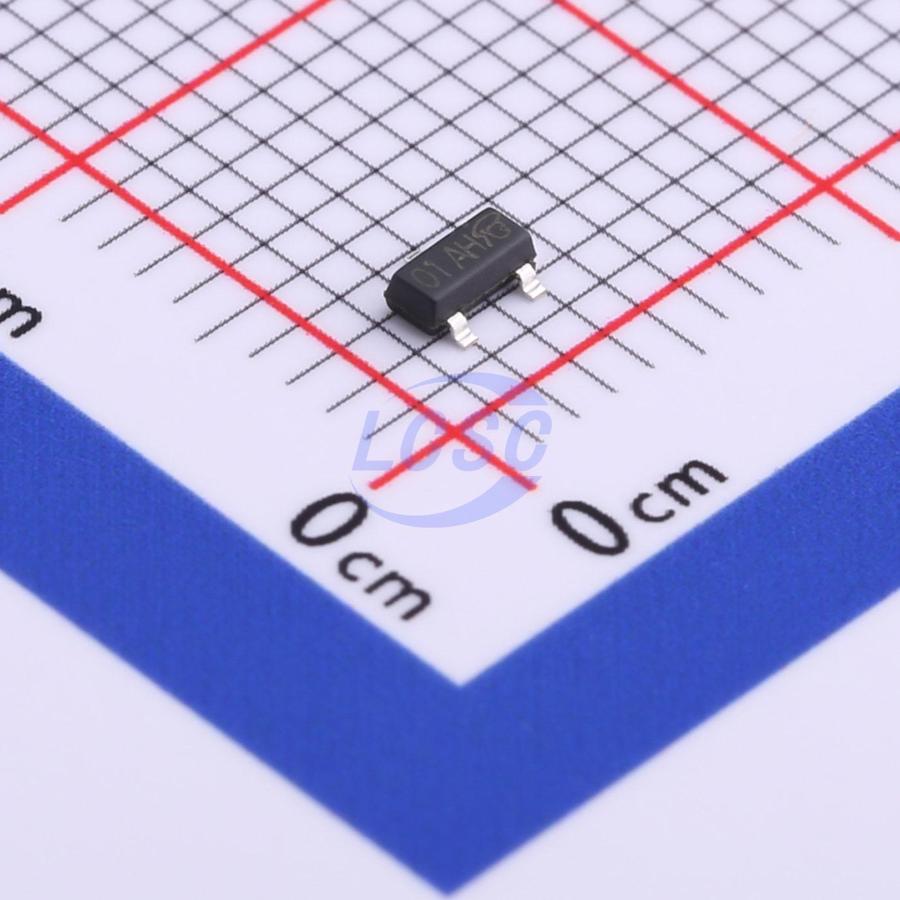

AO3415A-VB
P-Channel 20V 4A 2.5W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 20V 4A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AO3415A-VB
- Store part #
- C879135
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C879135
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.53 | ₹105.30 |
| 100+ | ₹8.65 | ₹865.00 |
| 300+ | ₹7.71 | ₹2,313.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹4.88 | ₹29,280.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹10.53
₹105.30
excl. GST
₹124.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO3415A-VB
₹105.30 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 835pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6.4nC@2.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
Applications
- Load Switch - Power Amplifier Switch - DC/DC Converter
Key features
- Halogen-free product as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTR1P02LT3G-VB#C7568785VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 170 | ₹9.10 · 170 in stock | View |
 | CMN2305M-VB#C878849VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹9.01 · 10 in stock | View |
 | AP2305GN-VB#C878980VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹9.67 · 100 in stock | View |
 | IM2132-VB#C879034VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹9.26 · 50 in stock | View |
 | SPP3413S23RG-VB#C18212595VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹9.10 · 100 in stock | View |
