VBsemi ElecDatasheet (PDF)

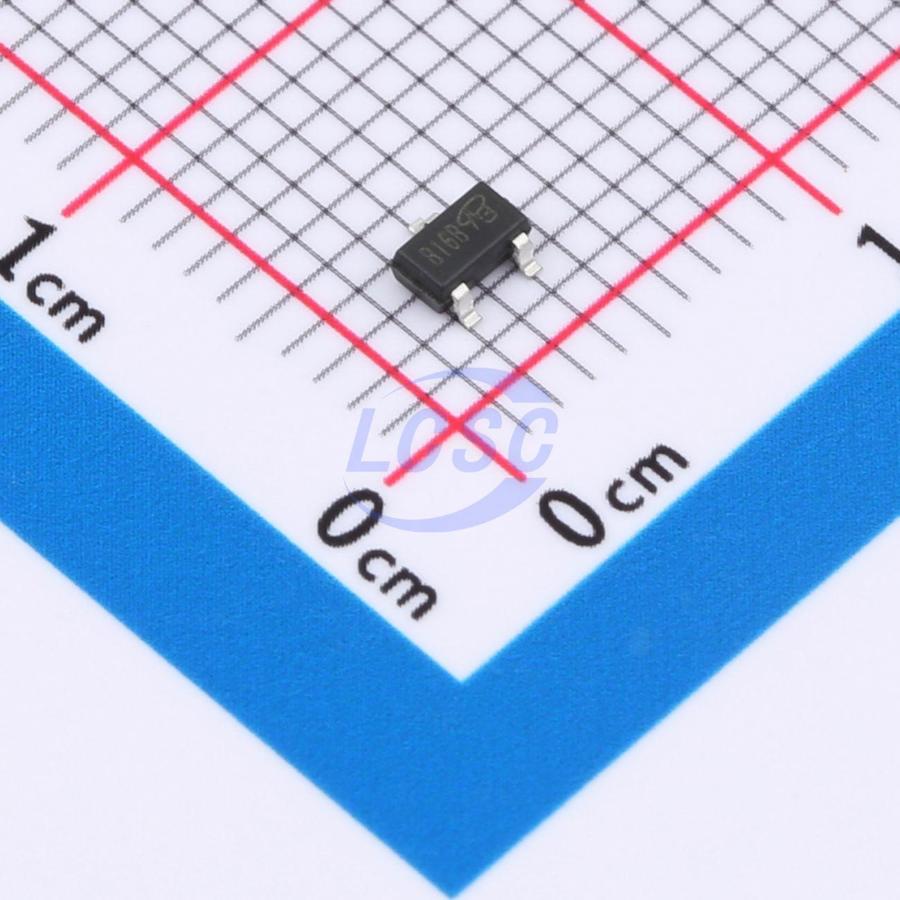

AO3422A-VB
N-Channel 60V 4A 1.66W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 60V 4A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AO3422A-VB
- Store part #
- C22389199
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22389199
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.09 | ₹145.45 |
| 50+ | ₹22.83 | ₹1,141.50 |
| 150+ | ₹20.16 | ₹3,024.00 |
| 500+ | ₹16.83 | ₹8,415.00 |
| 3,000+ | ₹15.33 | ₹45,990.00 |
| 6,000+ | ₹14.45 | ₹86,700.00 |
5 × ₹29.09
₹145.45
excl. GST
₹171.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO3422A-VB
₹145.45 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4A
- Output Capacitance(Coss)
- 22pF
- Ciss-Input Capacitance
- 180pF
- Pd - Power Dissipation
- 1.66W
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 75mΩ@10V;86mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.2nC@10V;2.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V;3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Applications
- Battery Switch - DC/DC Converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
