HXY MOSFETDatasheet (PDF)

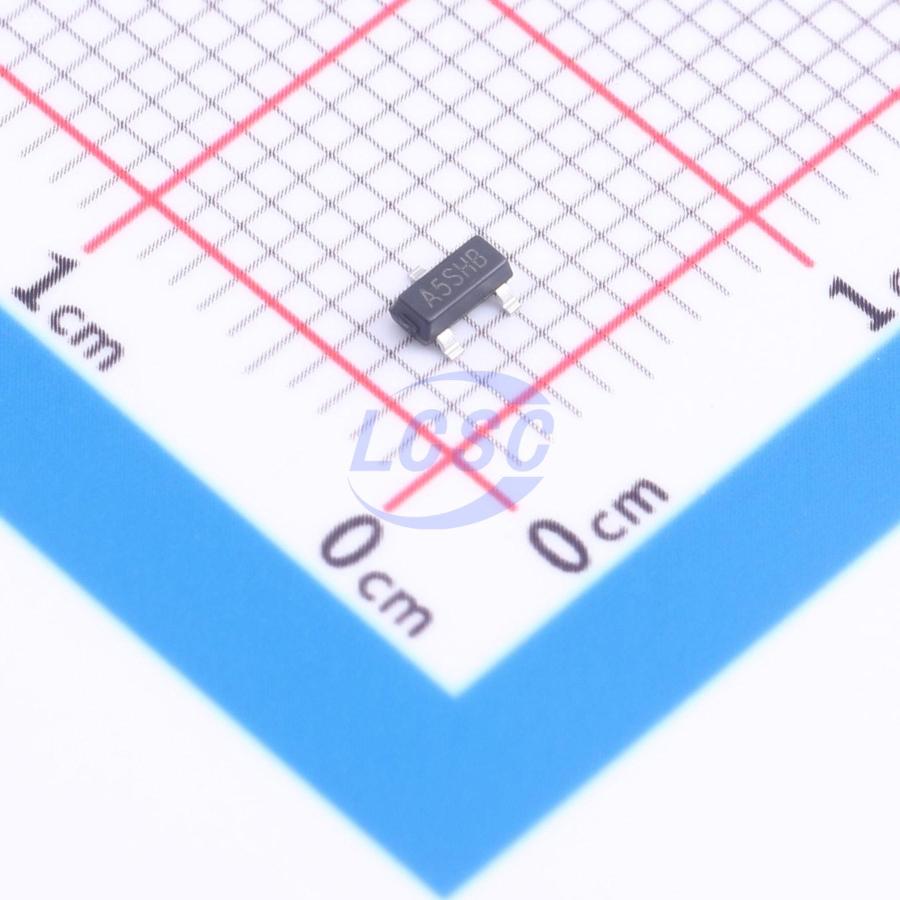

AO3495
20V 5A 1.31W 35mΩ@4.5V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AO3495
- Store part #
- C54582698
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C54582698
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.44 | ₹92.20 |
| 50+ | ₹14.86 | ₹743.00 |
| 150+ | ₹13.06 | ₹1,959.00 |
| 500+ | ₹11.71 | ₹5,855.00 |
| 3,000+ | ₹10.64 | ₹31,920.00 |
| 6,000+ | ₹10.09 | ₹60,540.00 |
5 × ₹18.44
₹92.20
excl. GST
₹108.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO3495
₹92.20 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 5A
- Output Capacitance(Coss)
- 114pF
- Pd - Power Dissipation
- 1.31W
- RDS(on)
- 35mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10.2nC@4.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The AO3495 utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 2.5V. This device is suitable for battery protection or other switching applications.
Applications
- High power and large current handling capability
- Lead-free product
- Surface mount package
- PWM applications
- Load switch
- Power management
- SOT-23 package
- P-channel MOSFET
Key features
- Drain-source voltage (VDS) = -20V, drain current (ID) = -5A
- On-resistance (RDS(ON)) < 45mΩ at gate-source voltage (VGS) = 4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLML2244TRPBF-HXY#C20606284HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 80 | ₹8.89 · 80 in stock | View |
 | IRLML6401PBF-HXY#C22367104HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 70 | ₹35.22 · 70 in stock | View |
 | SM2305SRL-HXY#C22367105HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 30 | ₹5.29 · 30 in stock | View |
 | HIRLML6401TRPBF#C41428812HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 3,430 | ₹7.26 · 3,430 in stock | View |
 | HNTR3A052PZT1G#C42401268HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 15 | ₹28.78 · 15 in stock | View |
