HXY MOSFETDatasheet (PDF)

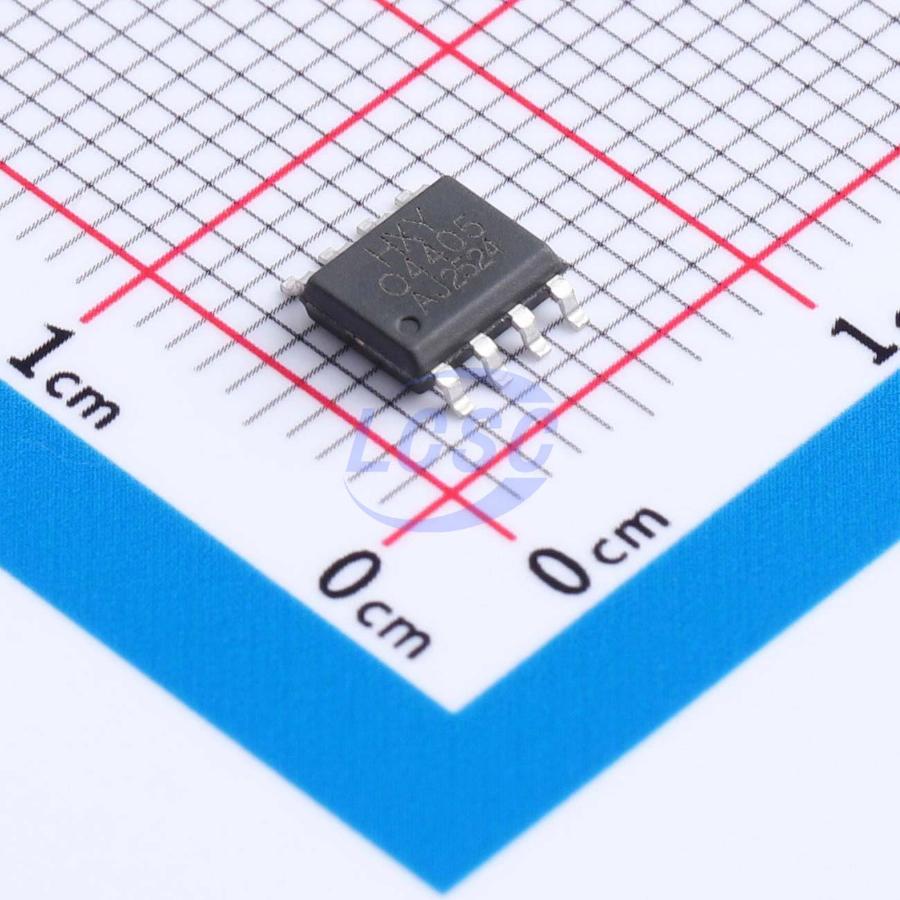

AO4405-HXY
P-Channel 30V 6A 2.5W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET P-CH 30V 6A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AO4405-HXY
- Store part #
- C22366820
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C22366820
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.16 | ₹65.80 |
| 50+ | ₹10.49 | ₹524.50 |
| 150+ | ₹9.16 | ₹1,374.00 |
| 500+ | ₹8.15 | ₹4,075.00 |
| 3,000+ | ₹7.34 | ₹22,020.00 |
| 6,000+ | ₹6.95 | ₹41,700.00 |
5 × ₹13.16
₹65.80
excl. GST
₹77.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO4405-HXY
₹65.80 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 195pF
- Current - Continuous Drain(Id)
- 9A
- Ciss-Input Capacitance
- 1.175nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 18mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 18nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.113 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI4431CDY-T1-E3-HXY#C22366818HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 50 | ₹32.77 · 50 in stock | View |
 | SI9435BDY-T1-E3-HXY#C22366821HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 190 | ₹22.73 · 190 in stock | View |
 | IRF7406PBF-HXY#C22366824HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 70 | ₹15.48 · 70 in stock | View |
 | STP4435-HXY#C22366825HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 95 | ₹16.66 · 95 in stock | View |
 | AO4419-HXY#C22367018HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 200 | ₹13.15 · 200 in stock | View |
