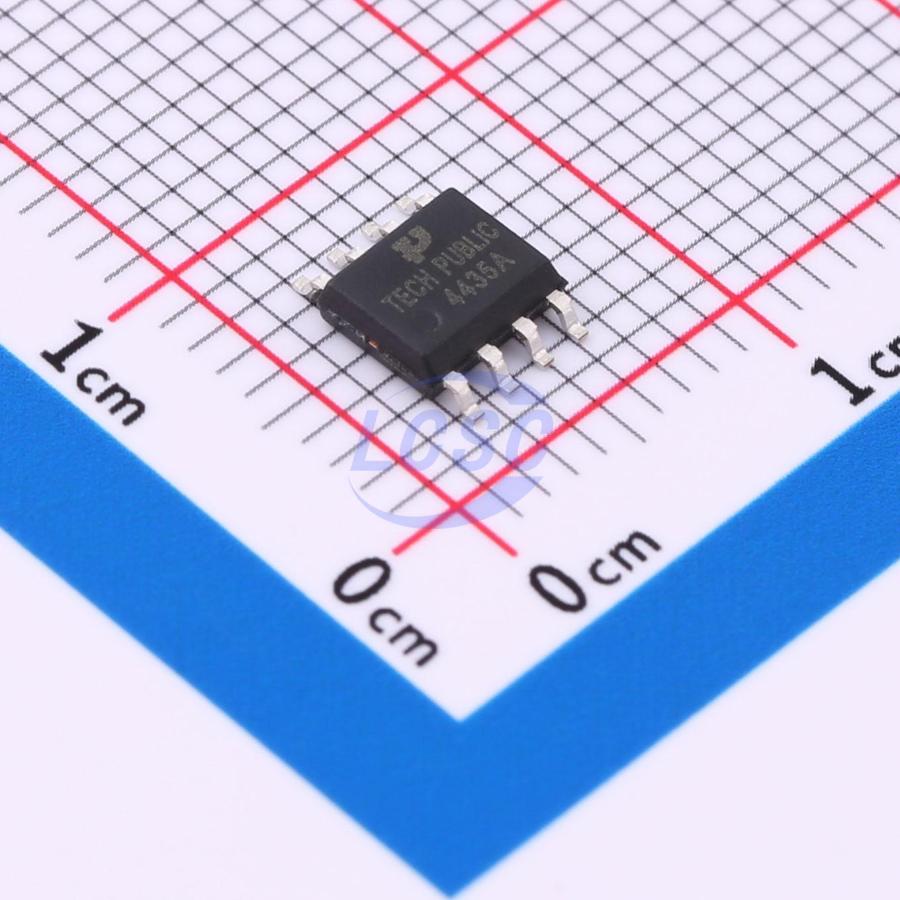

AO4435A
30V 9A 2.5W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET 30V 9A SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AO4435A
- Store part #
- C41348128
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,855 in stock
#C41348128
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.73 | ₹68.65 |
| 50+ | ₹10.85 | ₹542.50 |
| 150+ | ₹9.42 | ₹1,413.00 |
| 500+ | ₹8.33 | ₹4,165.00 |
| 3,000+ | ₹7.47 | ₹22,410.00 |
| 6,000+ | ₹7.04 | ₹42,240.00 |
5 × ₹13.73
₹68.65
excl. GST
₹81.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO4435A
₹68.65 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 9A
- Ciss-Input Capacitance
- 1.49nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 148pF
- RDS(on)
- 20mΩ@10V
- Number
- 1 P-Channel
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.176 g
Overview
Applications
- Load/Power Switch
- Interface Switch
- Logic Level Translation
Key features
- Drain-source voltage (VDS) = -30V, drain current (ID) = -9A
- RDS(ON) ≤ 20mΩ at VGS = -10V
- RDS(ON) ≤ 35mΩ at VGS = -4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CEM4435A#C41348148TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,245 | ₹14.70 · 3,245 in stock | View |
 | AO4435#C5122006TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 4,040 | ₹25.90 · 4,040 in stock | View |
 | TPC8127-TP#C48886829TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 465 | ₹65.18 · 465 in stock | View |
 | TPM3019PS8-1#C48886834TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 500 | ₹86.22 · 500 in stock | View |
 | TPSI4413ADY#C48886840TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 419 | ₹72.57 · 419 in stock | View |
