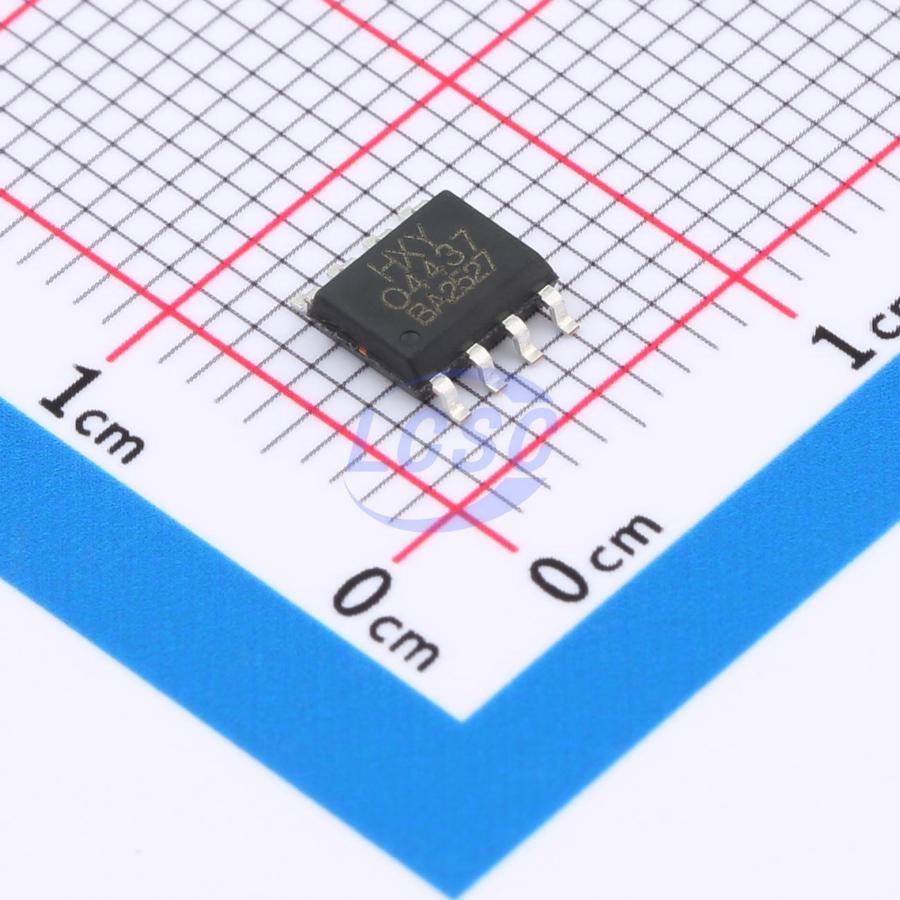

HXY MOSFET

AO4437

20V 20A 18W 15mΩ@4.5V 1 P-Channel P-Channel SOP-8 Single FETs, MOSFETs

SOP-8RoHSActive

MOSFET P-CH 20V 20A SOP-8

Manufacturer: HXY MOSFET
Manufacturer part #: AO4437
Store part #: C50177028
Package / case: SOP-8
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

60 in stock

#C50177028

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹44.02	₹220.10
50+	₹35.26	₹1,763.00
150+	₹31.50	₹4,725.00
500+	₹26.82	₹13,410.00
3,000+	₹24.73	₹74,190.00
6,000+	₹23.47	₹1,40,820.00

Quantity (min 5, multiples of 5)

5 × ₹44.02

₹220.10

excl. GST

₹259.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AO4437

₹220.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Configuration: Standalone
Drain to Source Voltage: 20V
Operating Temperature: -55℃~+150℃
Output Capacitance(Coss): 690pF
Current - Continuous Drain(Id): 20A
Ciss-Input Capacitance: 2.8nF
Pd - Power Dissipation: 18W
Reverse Transfer Capacitance (Crss): 590pF
RDS(on): 15mΩ@4.5V
Number: 1 P-Channel
Gate Charge(Qg): 35nC@4.5V
Gate Threshold Voltage (Vgs(th)): 700mV
Type: P-Channel

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.121 g

Overview

The AO4437 utilizes advanced trench technology to deliver excellent RDS(ON), low gate charge, and operation down to 2.5V gate voltage. This device is suitable for battery protection or other switching applications.

Applications

Battery Protection - Load Switch - Uninterruptible Power Supply

Key features

VDS = -20V, ID = -20A
RDS(ON) < 19mΩ at VGS = 10V
