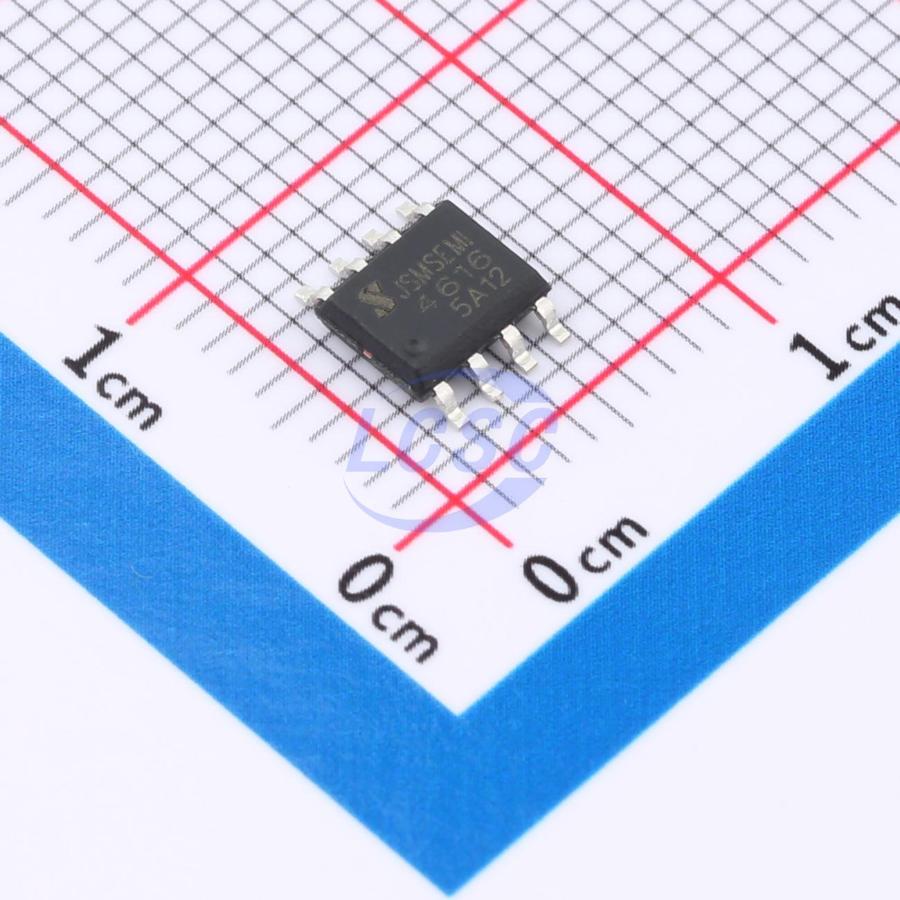

AO4616
N-Channel+P-Channel Array 30V 8A 10A 2W 2W Surface Mount SOP-8
SOP-8ROHS CompliantActive
MOSFET N-CH+P-CH ARR 30V 8A 10A SOP-8
- Manufacturer
- JSMSEMI
- Manufacturer part #
- AO4616
- Store part #
- C49011183
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,095 in stock
#C49011183
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.16 | ₹85.80 |
| 50+ | ₹13.51 | ₹675.50 |
| 150+ | ₹11.70 | ₹1,755.00 |
| 500+ | ₹10.32 | ₹5,160.00 |
| 3,000+ | ₹9.23 | ₹27,690.00 |
| 6,000+ | ₹8.68 | ₹52,080.00 |
5 × ₹17.16
₹85.80
excl. GST
₹101.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO4616
₹85.80 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 67pF;140pF
- Current - Continuous Drain(Id)
- 8A;10A
- Ciss-Input Capacitance
- 373pF;760pF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 41pF;95pF
- RDS(on)
- 20mΩ@10V;15mΩ@10V
- Gate Charge(Qg)
- 7.2nC@10V;13.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V;1.5V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
AO4616 employs advanced trench technology MOSFETs, delivering excellent on-resistance RDS(ON) and low gate charge. The complementary MOSFETs are suitable for inverter and other applications.
Applications
- Load switch
- PWM applications
- Power management
Key features
- N-Channel
- Drain-Source Voltage VDS = 30 V
- Drain Current ID = 8 A (Gate-Source Voltage VGS = 10 V)
- On-Resistance RDS(ON) < 20 mΩ (Gate-Source Voltage VGS = 10 V)
- On-Resistance RDS(ON) < 30 mΩ (Gate-Source Voltage VGS = 4.5 V)
- P-Channel
- -30 V
- -10 A (Gate-Source Voltage VGS = -10 V)
- On-Resistance RDS(ON) < 20 mΩ (Gate-Source Voltage VGS = -10 V)
- On-Resistance RDS(ON) < 30 mΩ (Gate-Source Voltage VGS = -4.5 V)
- SOP-8L Package
- 100% Unclamped Inductive Switching (UIS) Tested
- 100% Gate Resistance (Rg) Tested
