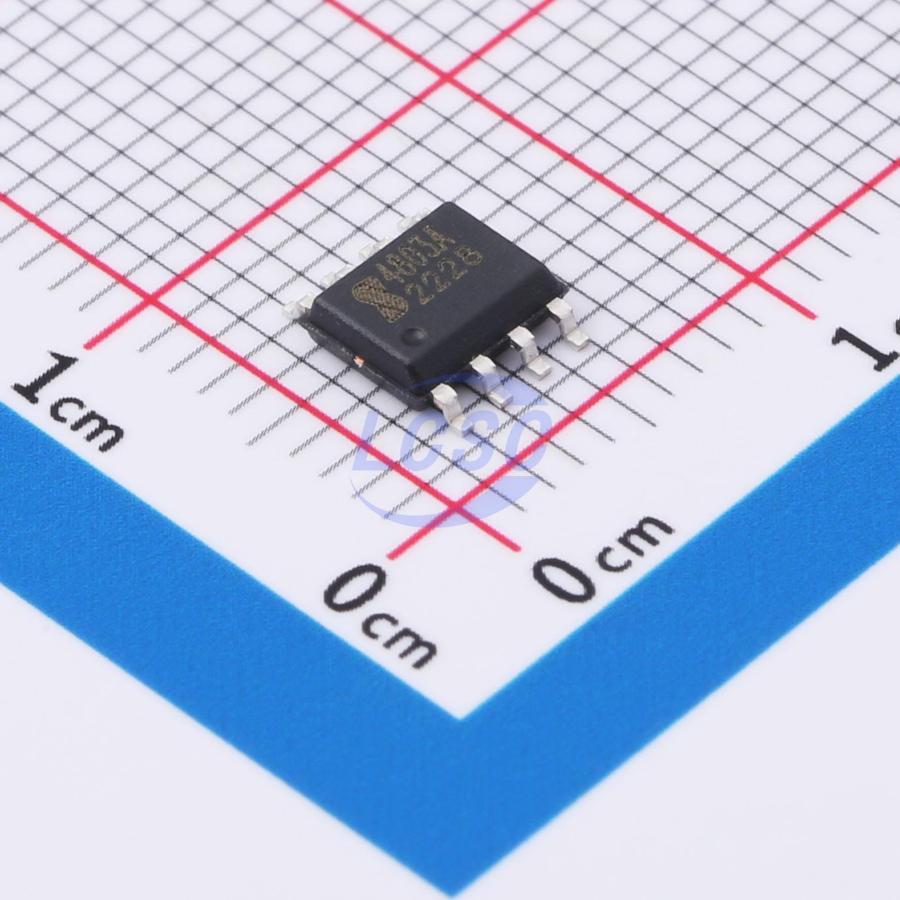

AO4803A
P-Channel 30V 5.1A 2.5W Surface Mount SOP-8
SOP-8ROHS CompliantActive
MOSFET P-CH ARR 30V 5.1A SOP-8
- Manufacturer
- JSMSEMI
- Manufacturer part #
- AO4803A
- Store part #
- C5183839
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,465 in stock
#C5183839
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.00 | ₹75.00 |
| 50+ | ₹11.85 | ₹592.50 |
| 150+ | ₹10.29 | ₹1,543.50 |
| 500+ | ₹9.12 | ₹4,560.00 |
| 3,000+ | ₹8.16 | ₹24,480.00 |
| 6,000+ | ₹7.70 | ₹46,200.00 |
5 × ₹15.00
₹75.00
excl. GST
₹88.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO4803A
₹75.00 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5.1A
- Ciss-Input Capacitance
- 520pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 70pF
- RDS(on)
- 55mΩ@10V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 11nC@10V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.13 g
Overview
This dual P-channel MOSFET employs advanced trench technology and design to deliver excellent on-resistance (RDS(on)) with low gate charge. It is suitable for a wide range of applications.
Applications
- Mobile phones & accessories - Personal digital assistants - Portable instruments - Load switches
Key features
- VDS = -30 V, ID = -5.1 A, RDS(ON) < 55 mΩ at VGS = 10 V
- Low gate charge
- RoHS-compliant devices available
- Advanced high cell-density trench technology for ultra-low RDS(ON)
- High-quality package with excellent thermal performance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | APM4953#C5296733JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 335 | ₹14.43 · 335 in stock | View |
 | JSM4953#C917085JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 17,500 | ₹10.88 · 17,500 in stock | View |
 | AO4953#C49012083JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 1,410 | ₹15.27 · 1,410 in stock | View |
 | IRF7306TRPBF-JSM#C49206908JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 4,145 | ₹34.24 · 4,145 in stock | View |
 | AO4813#C20609406JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 2,835 | ₹23.42 · 2,835 in stock | View |
