HXY MOSFETDatasheet (PDF)

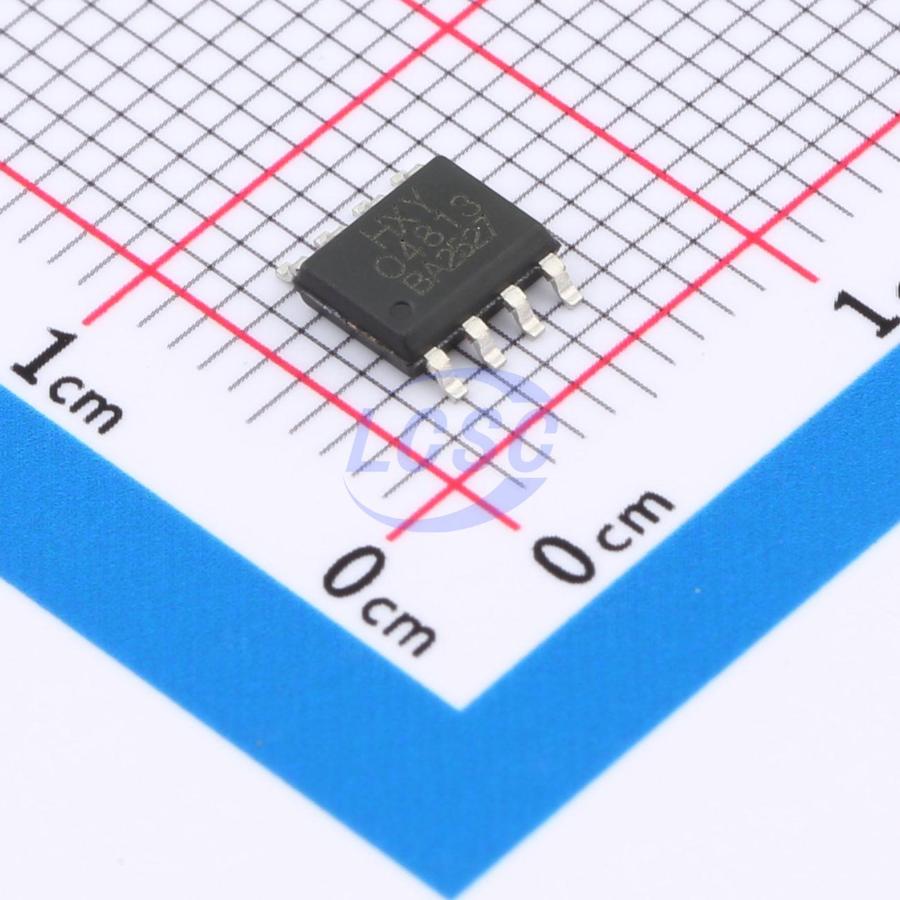

AO4813
30V 8.5A 1.5W 14mΩ@10V 2 P-Channel P-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
MOSFET P-CH 30V 8.5A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AO4813
- Store part #
- C50177031
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
175 in stock
#C50177031
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.15 | ₹195.75 |
| 50+ | ₹31.36 | ₹1,568.00 |
| 150+ | ₹28.02 | ₹4,203.00 |
| 500+ | ₹23.85 | ₹11,925.00 |
| 3,000+ | ₹22.00 | ₹66,000.00 |
| 6,000+ | ₹20.88 | ₹1,25,280.00 |
5 × ₹39.15
₹195.75
excl. GST
₹230.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO4813
₹195.75 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 194pF
- Current - Continuous Drain(Id)
- 8.5A
- Ciss-Input Capacitance
- 1.345nF
- Pd - Power Dissipation
- 1.5W
- Reverse Transfer Capacitance (Crss)
- 158pF
- RDS(on)
- 14mΩ@10V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 12.6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7328PBF-HXY#C22367184HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 24 | ₹101.91 · 24 in stock | View |
 | DMP3036SSD-HXY#C22367185HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 50 | ₹33.15 · 50 in stock | View |
 | IRF9358PBF-HXY#C22367186HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 3,170 | ₹42.22 · 3,170 in stock | View |
 | SI4925BDY-T1-E3-HXY#C22367190HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 2,975 | ₹50.05 · 2,975 in stock | View |
 | STP4925-HXY#C22367191HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 30 | ₹26.09 · 30 in stock | View |
