TECH PUBLICDatasheet (PDF)

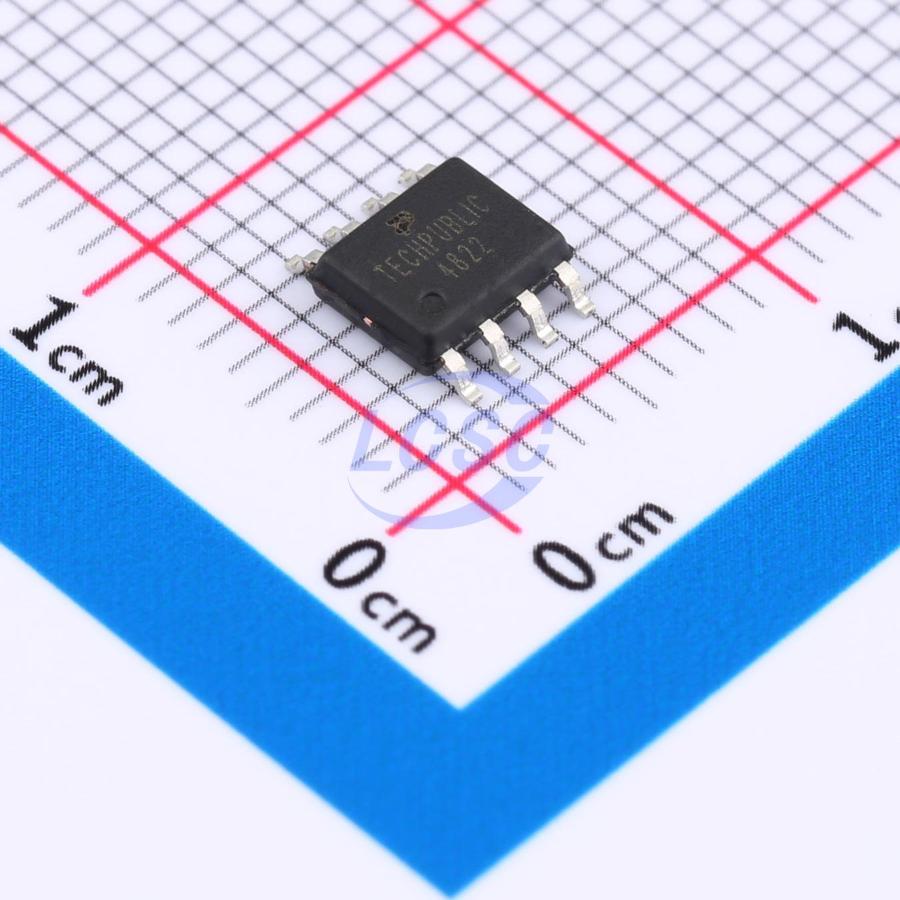

AO4822
N-Channel Array 30V 4.8A 1.3W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET N-CH ARR 30V 4.8A SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AO4822
- Store part #
- C5370960
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
965 in stock
#C5370960
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.07 | ₹90.35 |
| 50+ | ₹14.29 | ₹714.50 |
| 150+ | ₹12.40 | ₹1,860.00 |
| 500+ | ₹10.97 | ₹5,485.00 |
| 3,000+ | ₹9.83 | ₹29,490.00 |
| 6,000+ | ₹9.27 | ₹55,620.00 |
5 × ₹18.07
₹90.35
excl. GST
₹106.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AO4822
₹90.35 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 65pF
- Ciss-Input Capacitance
- 350pF
- Pd - Power Dissipation
- 1.3W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4.8A
- Reverse Transfer Capacitance (Crss)
- 16pF
- RDS(on)
- 35mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 11.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.185 g
Overview
Applications
- Laptop power management
- Portable devices
- Battery-powered systems
- DC/DC converters
- Load switches
- Digital cameras
- LCD display inverters
Key features
- RDS(ON) ≤ 35mΩ at VGS = 10V
- RDS(ON) ≤ 45mΩ at VGS = 4.5V
- Ultra-high density cell design for extremely low RDS(ON)
- Excellent on-resistance and maximum DC current capability
