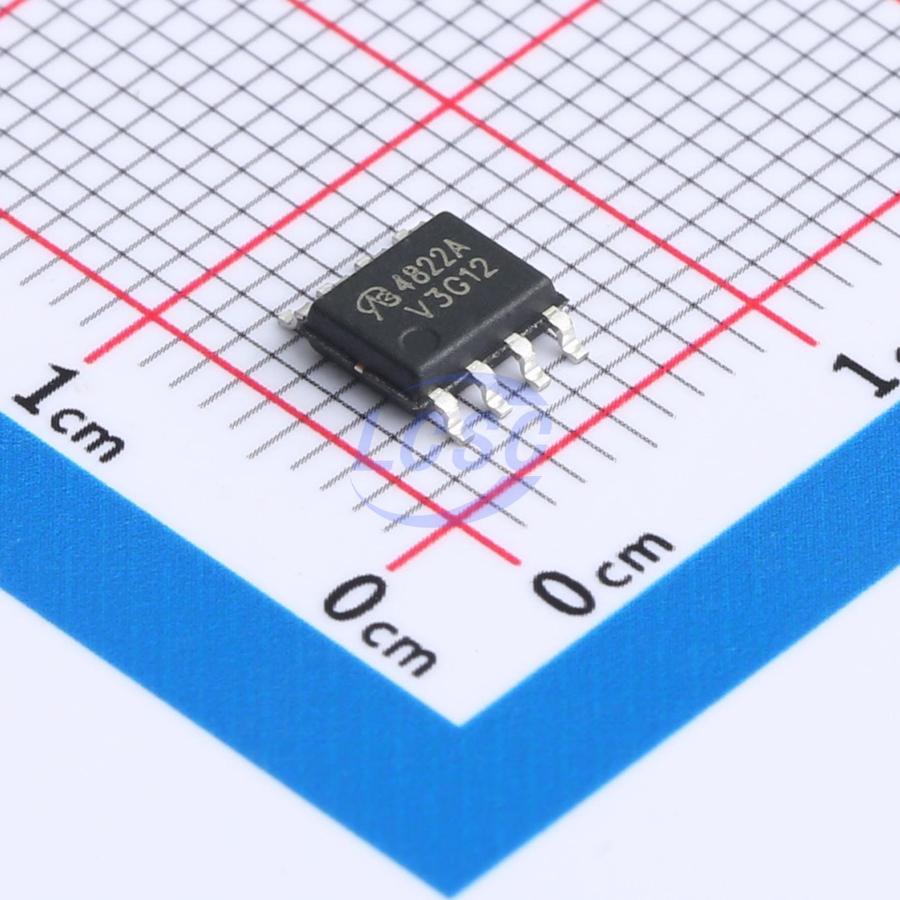

AO4822A-VB
N-Channel Array 30V 8.5A Surface Mount SO-8
SO-8ROHS CompliantActive
MOSFET N-CH ARR 30V 8.5A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AO4822A-VB
- Store part #
- C7568977
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7568977
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.56 | ₹53.56 |
| 10+ | ₹42.51 | ₹425.10 |
| 30+ | ₹37.84 | ₹1,135.20 |
| 100+ | ₹31.88 | ₹3,188.00 |
| 500+ | ₹29.33 | ₹14,665.00 |
| 1,000+ | ₹27.64 | ₹27,640.00 |
1 × ₹53.56
₹53.56
excl. GST
₹63.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AO4822A-VB
₹53.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 8.5A
- Ciss-Input Capacitance
- 660pF
- Reverse Transfer Capacitance (Crss)
- 86pF
- RDS(on)
- 20mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 14.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- Notebook system power supply — low-current DC/DC
Key features
- Trench power MOSFET
- 100% Rg tested
- 100% UIS tested
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO4884&30V-VB#C7494532VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 16 | ₹54.90 · 16 in stock | View |
 | IRL6372TR-VB#C878952VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹73.94 · 20 in stock | View |
 | SQ4920EY-T1-GE3-VB#C18212563VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 5 | ₹64.23 · 5 in stock | View |
 | SI4854DY-T1-E3-VB#C19190287VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹53.56 · 50 in stock | View |
 | AFN4214WS8RG-VB#C19626794VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹52.93 · 50 in stock | View |
