VBsemi ElecDatasheet (PDF)

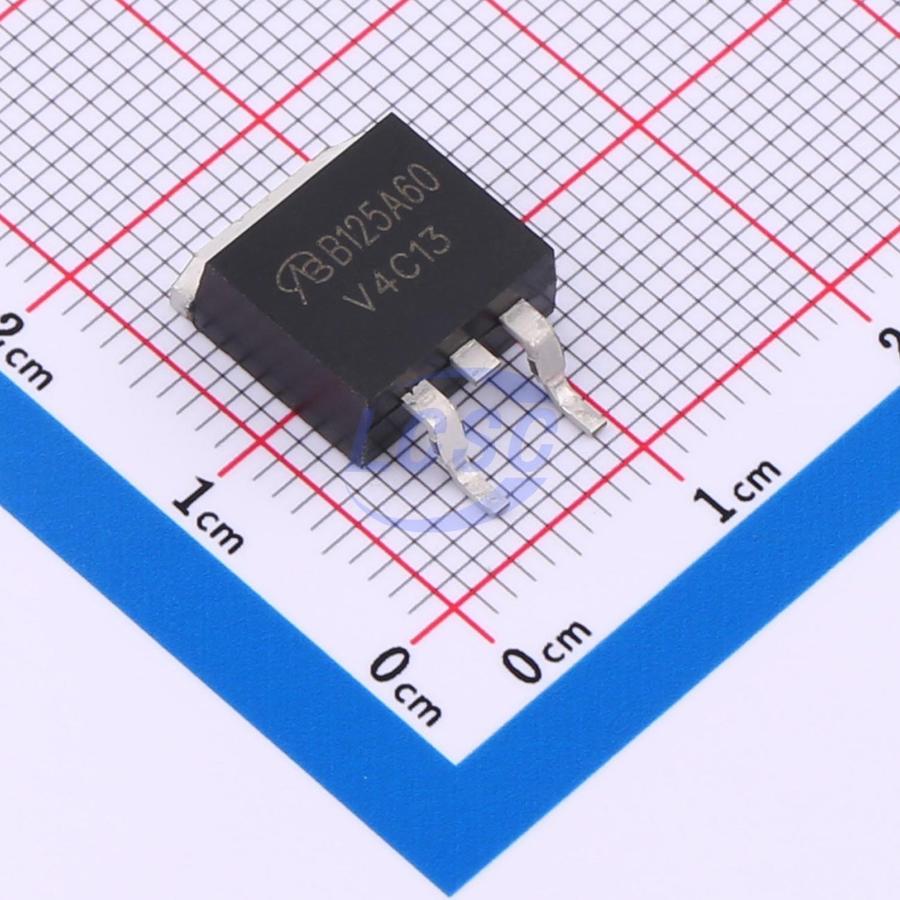

AOB125A60L-VB
N-Channel 600V 25A 140W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 600V 25A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOB125A60L-VB
- Store part #
- C22357154
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357154
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹444.26 | ₹444.26 |
| 10+ | ₹379.78 | ₹3,797.80 |
| 50+ | ₹341.55 | ₹17,077.50 |
| 100+ | ₹302.69 | ₹30,269.00 |
| 500+ | ₹284.84 | ₹1,42,420.00 |
| 1,000+ | ₹276.85 | ₹2,76,850.00 |
1 × ₹444.26
₹444.26
excl. GST
₹524.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AOB125A60L-VB
₹444.26 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 25A
- Ciss-Input Capacitance
- 2.9nF
- Pd - Power Dissipation
- 140W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 120mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 42nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.84 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Ultra-fast body diode
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
