VBsemi ElecDatasheet (PDF)

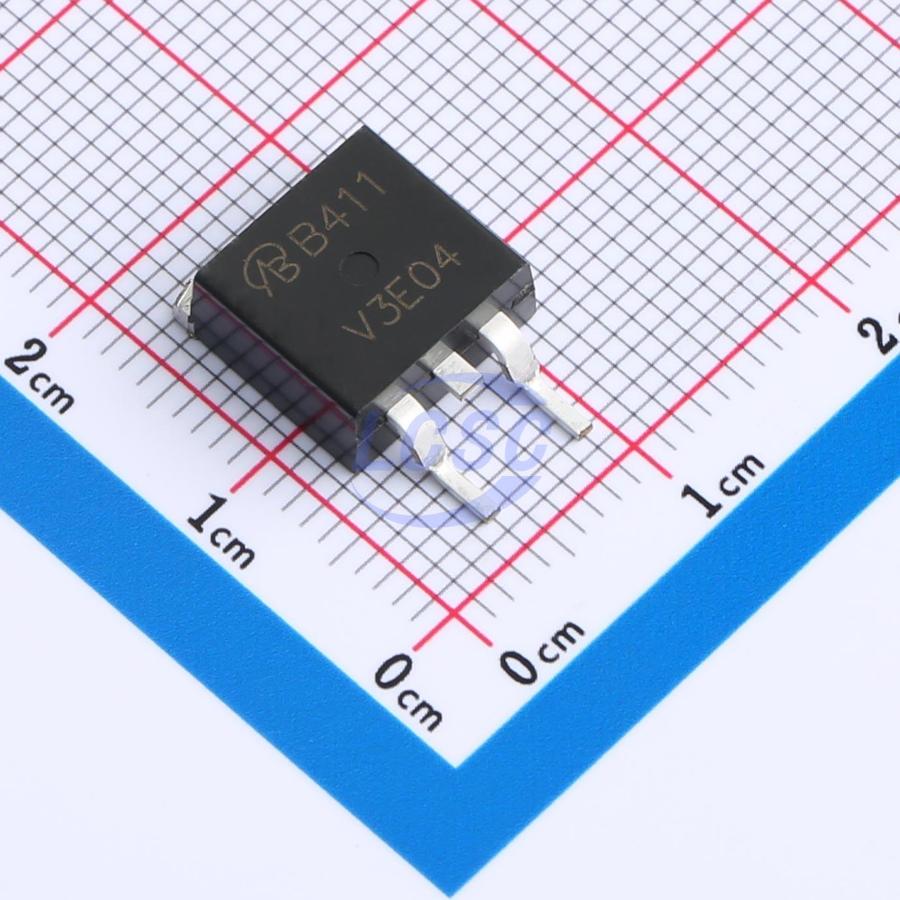

AOB411L-VB
P-Channel 60V 110A Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET P-CH 60V 110A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOB411L-VB
- Store part #
- C19188151
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C19188151
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹253.18 | ₹253.18 |
| 10+ | ₹219.45 | ₹2,194.50 |
| 50+ | ₹175.91 | ₹8,795.50 |
| 100+ | ₹154.35 | ₹15,435.00 |
| 500+ | ₹144.55 | ₹72,275.00 |
| 1,000+ | ₹140.20 | ₹1,40,200.00 |
1 × ₹253.18
₹253.18
excl. GST
₹298.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AOB411L-VB
₹253.18 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 975pF
- Current - Continuous Drain(Id)
- 110A
- Ciss-Input Capacitance
- 9.2nF
- Reverse Transfer Capacitance (Crss)
- 760pF
- RDS(on)
- 6.5mΩ@10V;8.5mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 160nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.395 g
Overview
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% gate resistance (Rg) tested
- Available products
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SUB65P06-20-VB#C20755694VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹253.18 · 10 in stock | View |
 | F4905S-VB#C22389915VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 43 | ₹291.27 · 43 in stock | View |
 | RJJ0601JPE-VB#C18212496VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 1 | ₹218.45 · 1 in stock | View |
 | SQM50P06-15L-GE3-VB#C7569062VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 20 | ₹275.61 · 20 in stock | View |
 | SUM110P06-08L-E3-VB#C47993917VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 6 | ₹296.01 · 6 in stock | View |
