VBsemi ElecDatasheet (PDF)

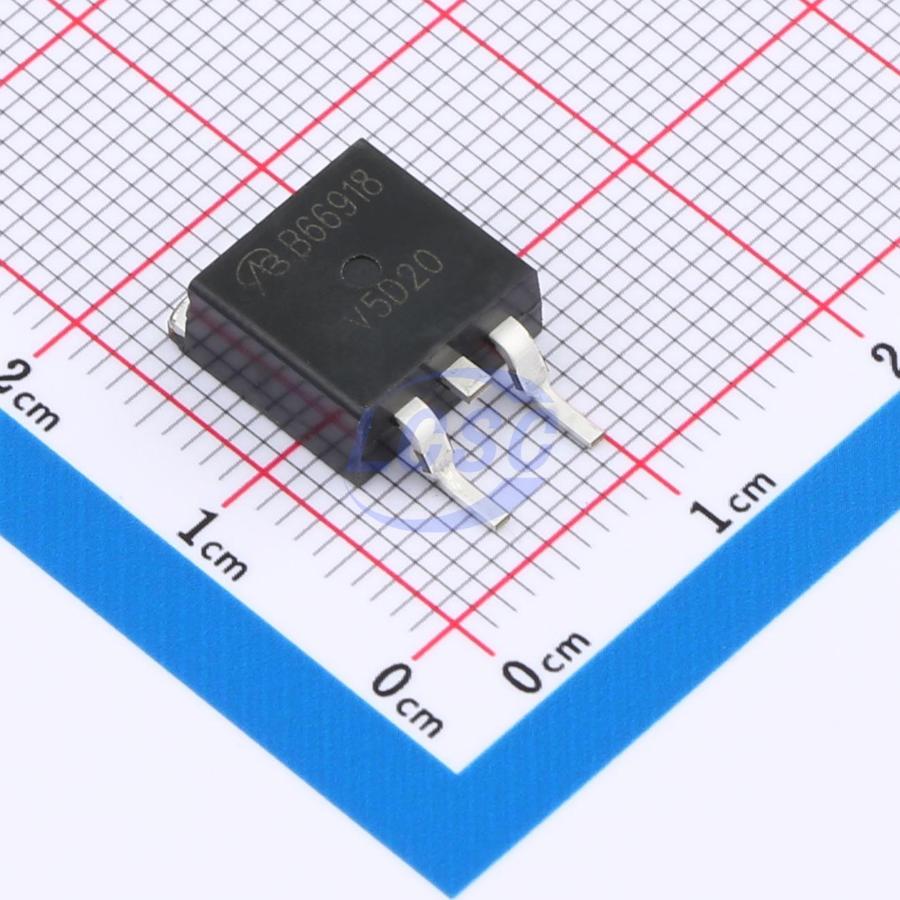

AOB66918L-VB
N-Channel 100V 140A Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 100V 140A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOB66918L-VB
- Store part #
- C47993970
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993970
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹247.30 | ₹247.30 |
| 10+ | ₹213.61 | ₹2,136.10 |
| 50+ | ₹164.50 | ₹8,225.00 |
| 100+ | ₹142.76 | ₹14,276.00 |
| 500+ | ₹132.99 | ₹66,495.00 |
| 1,000+ | ₹128.86 | ₹1,28,860.00 |
1 × ₹247.30
₹247.30
excl. GST
₹291.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AOB66918L-VB
₹247.30 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 140A
- Output Capacitance(Coss)
- 750pF
- Ciss-Input Capacitance
- 5.5nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V;4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.43 g
Overview
Key features
- Trench power MOSFET
- Low thermal resistance, new package
- 100% gate resistance (Rg) tested
- RoHS compliant
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFS4310TRLPBF-VB#C47993794VBsemi Elec · D2PAK(TO-263) | VBsemi Elec | D2PAK(TO-263) | 10 | ₹298.03 · 10 in stock | View |
 | 042N10N-VB#C20417633VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹253.18 · 10 in stock | View |
 | BUK768R1-100E-VB#C22389231VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹211.94 · 10 in stock | View |
 | AOB2918L-VB#C22389335VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 1 | ₹230.76 · 1 in stock | View |
 | BUK765R0-100E-VB#C29778727VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹211.94 · 10 in stock | View |
