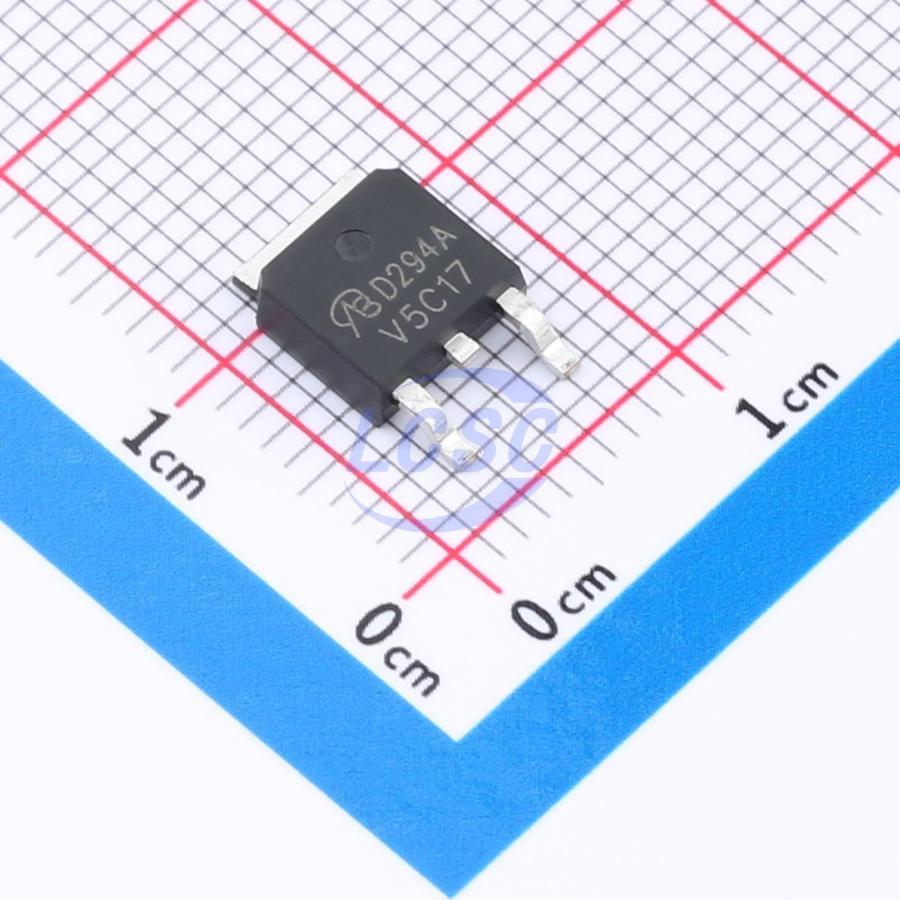

AOD294A-VB
N-Channel 100V 55A 600W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 55A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOD294A-VB
- Store part #
- C47993878
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993878
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹163.71 | ₹163.71 |
| 10+ | ₹140.20 | ₹1,402.00 |
| 30+ | ₹128.45 | ₹3,853.50 |
| 100+ | ₹116.69 | ₹11,669.00 |
| 500+ | ₹71.84 | ₹35,920.00 |
| 1,000+ | ₹68.15 | ₹68,150.00 |
1 × ₹163.71
₹163.71
excl. GST
₹193.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD294A-VB
₹163.71 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 55A
- Output Capacitance(Coss)
- 246pF
- Ciss-Input Capacitance
- 5.5nF
- Pd - Power Dissipation
- 600W
- Reverse Transfer Capacitance (Crss)
- 21pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 75nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.62 g
Overview
Applications
- Power Supply
- Uninterruptible Power Supply
- AC/DC Switching Power Supply
- Lighting
- Synchronous Rectification
- DC/DC Converter
- Motor Drive Switch
- DC/AC Inverter
- Solar Micro-Inverter
- Class D Audio Amplifier
Key features
- SGT technology power MOSFET
- Maximum junction temperature 175°C
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD105N10F7AG-VB#C47993967VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 4 | ₹147.38 · 4 in stock | View |
 | VBGE1105#C47993661VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹206.37 · 5 in stock | View |
 | K33S10N1Z-VB#C18212509VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 49 | ₹130.06 · 49 in stock | View |
 | IPD122N10N3G-VB#C20417530VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹128.56 · 30 in stock | View |
 | 100N10F7-VB TO252#C29779809VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 14 | ₹123.52 · 14 in stock | View |
