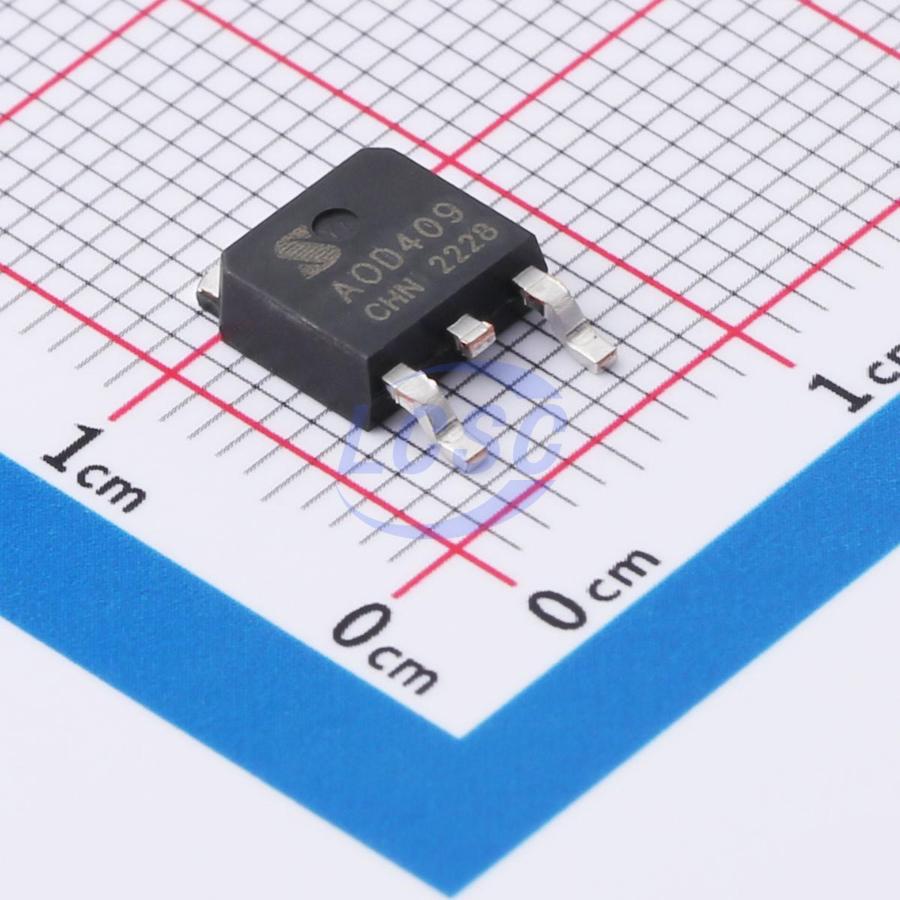

AOD409
60V 26A 60W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS CompliantActive
MOSFET 60V 26A TO-252(DPAK)
- Manufacturer
- JSMSEMI
- Manufacturer part #
- AOD409
- Store part #
- C2874627
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
192 in stock
#C2874627
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.57 | ₹63.57 |
| 10+ | ₹49.52 | ₹495.20 |
| 30+ | ₹43.46 | ₹1,303.80 |
| 100+ | ₹35.89 | ₹3,589.00 |
| 500+ | ₹32.44 | ₹16,220.00 |
| 1,000+ | ₹30.50 | ₹30,500.00 |
1 × ₹63.57
₹63.57
excl. GST
₹75.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD409
₹63.57 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 26A
- Pd - Power Dissipation
- 60W
- RDS(on)
- 40mΩ@10V
- Number
- 1 P-Channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.55 g
Overview
This power MOSFET is designed to minimize losses in power conversion applications and is optimized for 5V gate drive applications.
Applications
- Power supply
- Switching applications
Key features
- TO-252(DPAK) packaging
- High speed switching
- Low gate input resistance
- Standard level gate drive
- Easy to use
- 100% avalanche tested
- Minimum Lot-to-Lot variations for robust device performance and reliable operation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIRFR5305TRPBF#C20754790JSMSEMI · TO-252 | JSMSEMI | TO-252 | 1,740 | ₹64.83 · 1,740 in stock | View |
 | IRFR5305-JSM#C2874618JSMSEMI · TO-252 | JSMSEMI | TO-252 | 9,886 | ₹63.53 · 9,886 in stock | View |
 | JSM60P50K#C18191942JSMSEMI · TO-252 | JSMSEMI | TO-252 | 778 | ₹54.76 · 778 in stock | View |
| FR5305-S-JSM#C55317665JSMSEMI · TO-252 | JSMSEMI | TO-252 | 2,500 | ₹36.81 · 2,500 in stock | View | |
