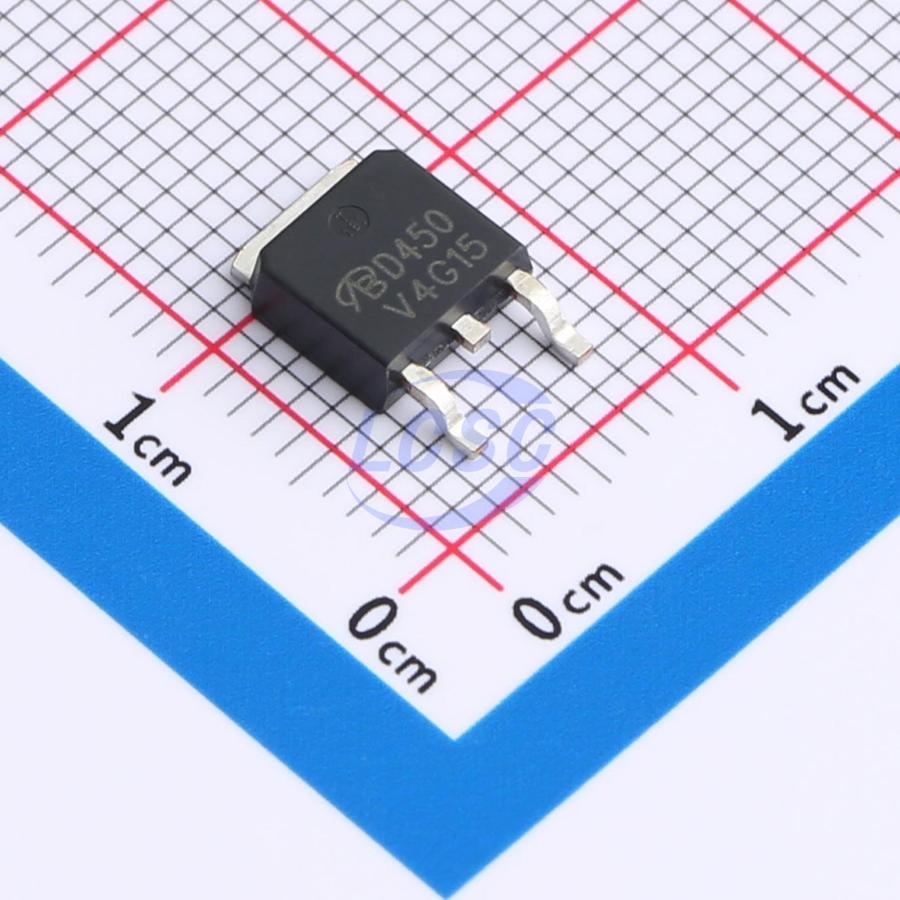

AOD450-VB
N-Channel 200V 10A 3W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 200V 10A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOD450-VB
- Store part #
- C29778642
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29778642
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.06 | ₹89.06 |
| 10+ | ₹71.64 | ₹716.40 |
| 30+ | ₹63.03 | ₹1,890.90 |
| 100+ | ₹54.41 | ₹5,441.00 |
| 500+ | ₹49.37 | ₹24,685.00 |
| 1,000+ | ₹46.64 | ₹46,640.00 |
1 × ₹89.06
₹89.06
excl. GST
₹105.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD450-VB
₹89.06 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 245mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 51nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.485 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 175°C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant (Directive 2002/95/EC)
