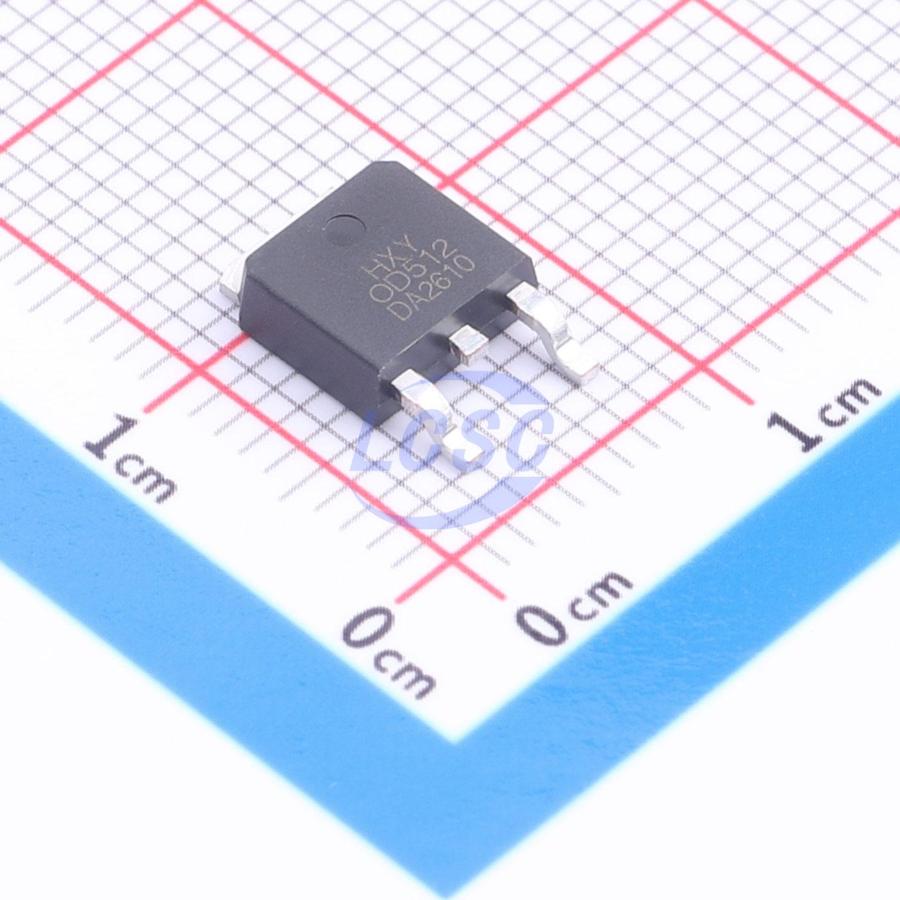

AOD512
30V 150A 87W 1.5mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AOD512
- Store part #
- C54582681
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C54582681
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.14 | ₹114.14 |
| 10+ | ₹93.67 | ₹936.70 |
| 30+ | ₹83.34 | ₹2,500.20 |
| 100+ | ₹73.21 | ₹7,321.00 |
| 500+ | ₹60.08 | ₹30,040.00 |
| 1,000+ | ₹56.85 | ₹56,850.00 |
1 × ₹114.14
₹114.14
excl. GST
₹134.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD512
₹114.14 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.022nF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 6.272nF
- Pd - Power Dissipation
- 87W
- Reverse Transfer Capacitance (Crss)
- 718pF
- RDS(on)
- 1.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 143nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.394 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD023N03LF2SATMA1-HXY#C54582650HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 17 | ₹73.52 · 17 in stock | View |
 | IRLR8743TRPBF-HXY#C54582653HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 18 | ₹103.60 · 18 in stock | View |
 | AM140N03-03D-HXY#C54582654HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹101.02 · 48 in stock | View |
 | DMTH3002LK3-13-HXY#C54582662HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹146.81 · 48 in stock | View |
 | IRLR8743PBF-HXY#C54582674HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 315 | ₹50.60 · 315 in stock | View |
