MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

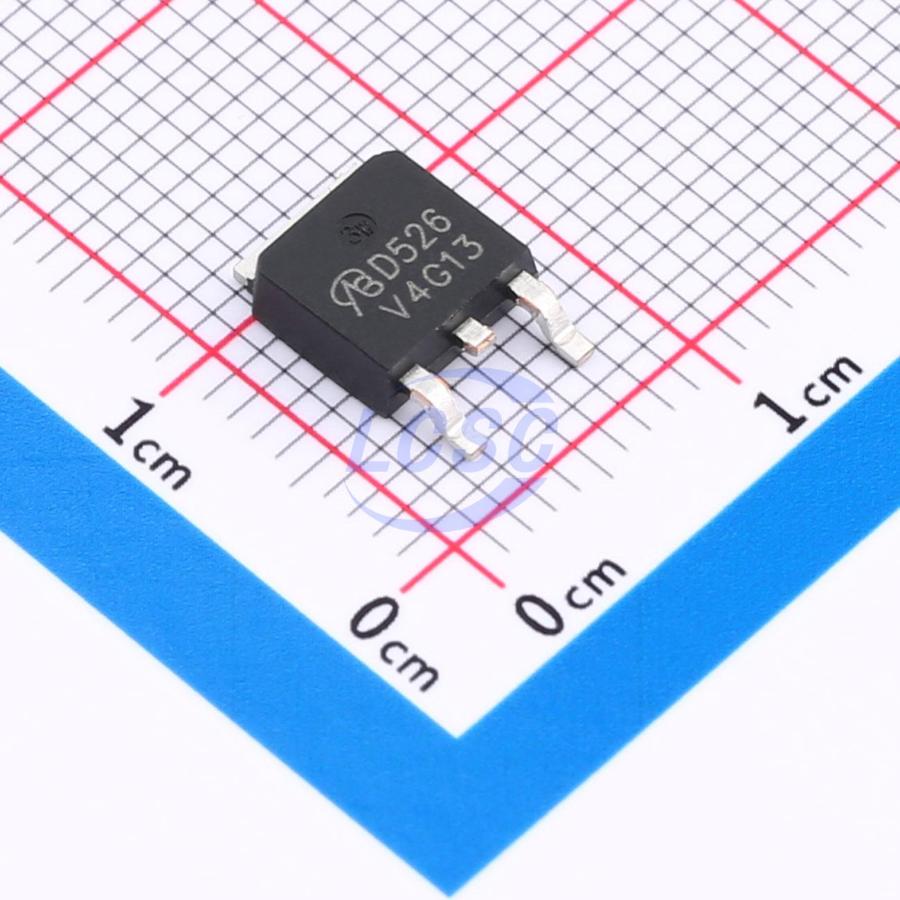

AOD526-VB
N-Channel 30V 100A 235W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 100A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOD526-VB
- Store part #
- C29778644
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C29778644
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.35 | ₹90.35 |
| 10+ | ₹75.11 | ₹751.10 |
| 30+ | ₹67.49 | ₹2,024.70 |
| 100+ | ₹59.87 | ₹5,987.00 |
| 500+ | ₹46.60 | ₹23,300.00 |
| 1,000+ | ₹44.20 | ₹44,200.00 |
1 × ₹90.35
₹90.35
excl. GST
₹106.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD526-VB
₹90.35 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 1.525nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 5.201nF
- Pd - Power Dissipation
- 235W
- Reverse Transfer Capacitance (Crss)
- 770pF
- RDS(on)
- 2mΩ@10V;3mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 151nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.49 g
Overview
Applications
- OR gate
- Server
- DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOD508-VB#C18212609VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 33 | ₹79.49 · 33 in stock | View |
 | BUK7207-30B-VB#C19190185VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹79.49 · 50 in stock | View |
 | 86T03GH-VB#C20417512VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 45 | ₹79.49 · 45 in stock | View |
 | PHD71NQ03LT-VB#C20755570VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹78.56 · 20 in stock | View |
 | 86T02GH-VB#C22389392VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 28 | ₹95.57 · 28 in stock | View |
