MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
HXY MOSFETDatasheet (PDF)

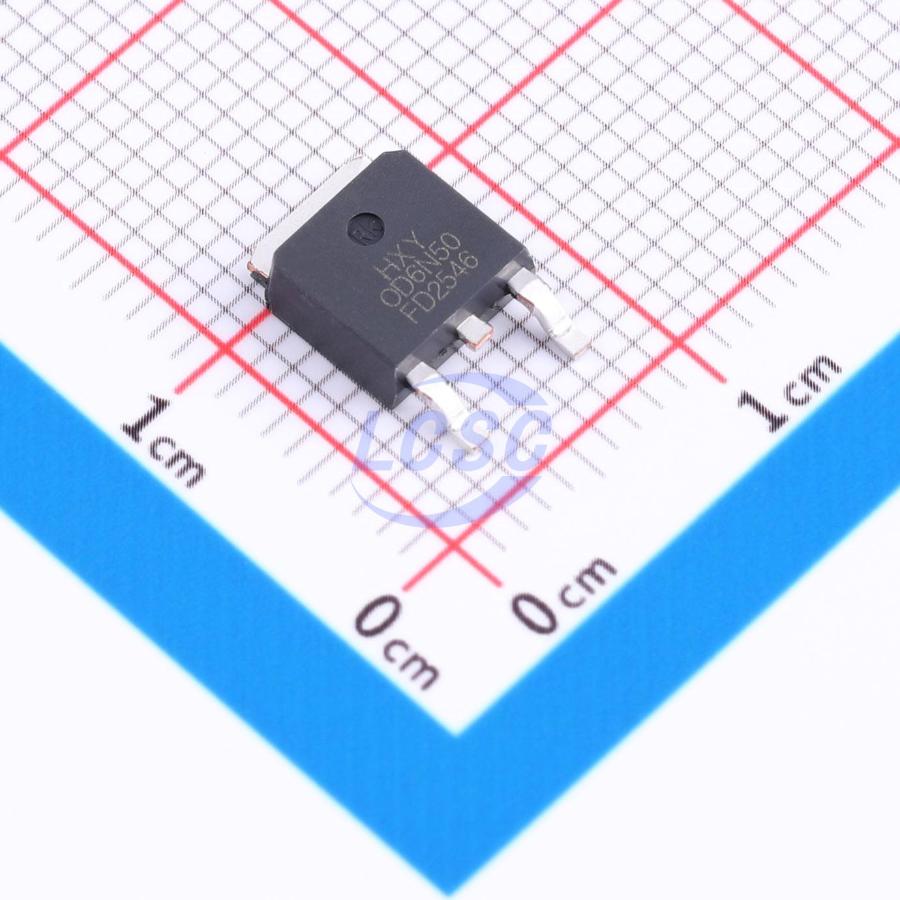

AOD6N50
83W 500V 5A 1.3Ω@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AOD6N50
- Store part #
- C53262966
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
89 in stock
#C53262966
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.83 | ₹91.83 |
| 10+ | ₹76.71 | ₹767.10 |
| 30+ | ₹68.93 | ₹2,067.90 |
| 100+ | ₹61.59 | ₹6,159.00 |
| 500+ | ₹51.65 | ₹25,825.00 |
| 1,000+ | ₹49.27 | ₹49,270.00 |
1 × ₹91.83
₹91.83
excl. GST
₹108.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD6N50
₹91.83 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 42pF
- Ciss-Input Capacitance
- 582pF
- Pd - Power Dissipation
- 83W
- Configuration
- Standalone
- Drain to Source Voltage
- 500V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 5A
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 1.3Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.375 g
