VBsemi ElecDatasheet (PDF)

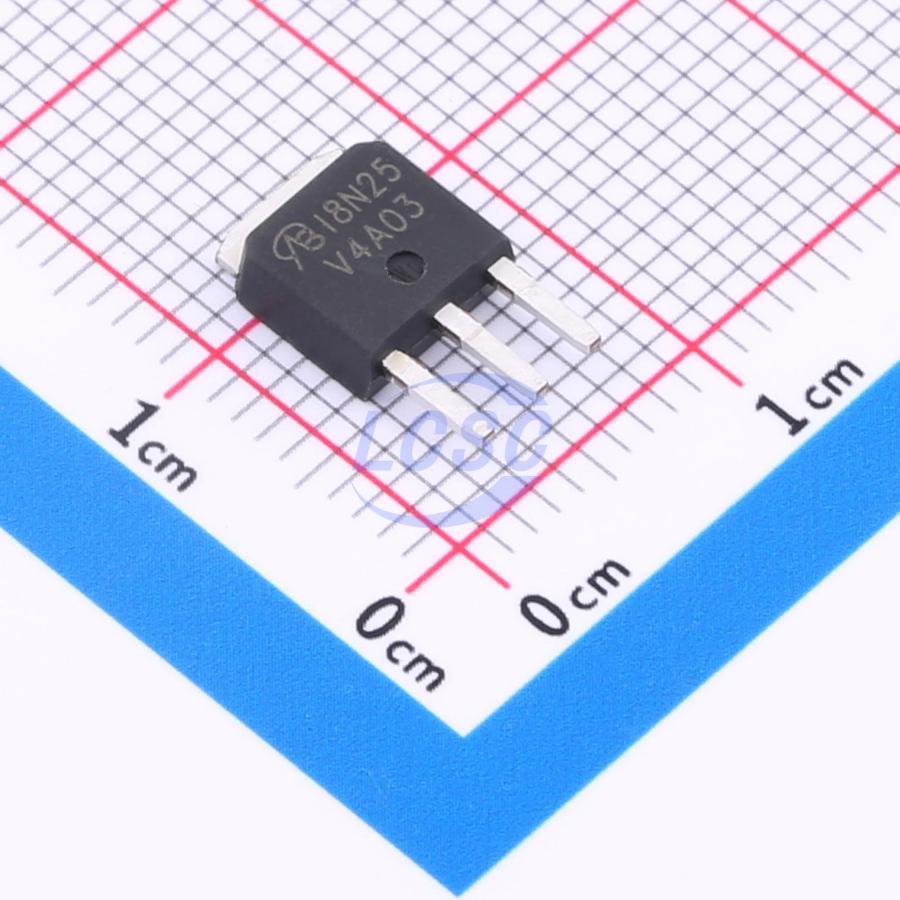

AOI8N25-VB
N-Channel 200V 8A 96W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 200V 8A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOI8N25-VB
- Store part #
- C20626384
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C20626384
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.11 | ₹69.11 |
| 10+ | ₹54.20 | ₹542.00 |
| 30+ | ₹47.89 | ₹1,436.70 |
| 80+ | ₹39.91 | ₹3,192.80 |
| 480+ | ₹36.55 | ₹17,544.00 |
| 960+ | ₹34.45 | ₹33,072.00 |
1 × ₹69.11
₹69.11
excl. GST
₹81.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
AOI8N25-VB
₹69.11 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 100pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 270mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.375 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant with directive 2002/95/EC
