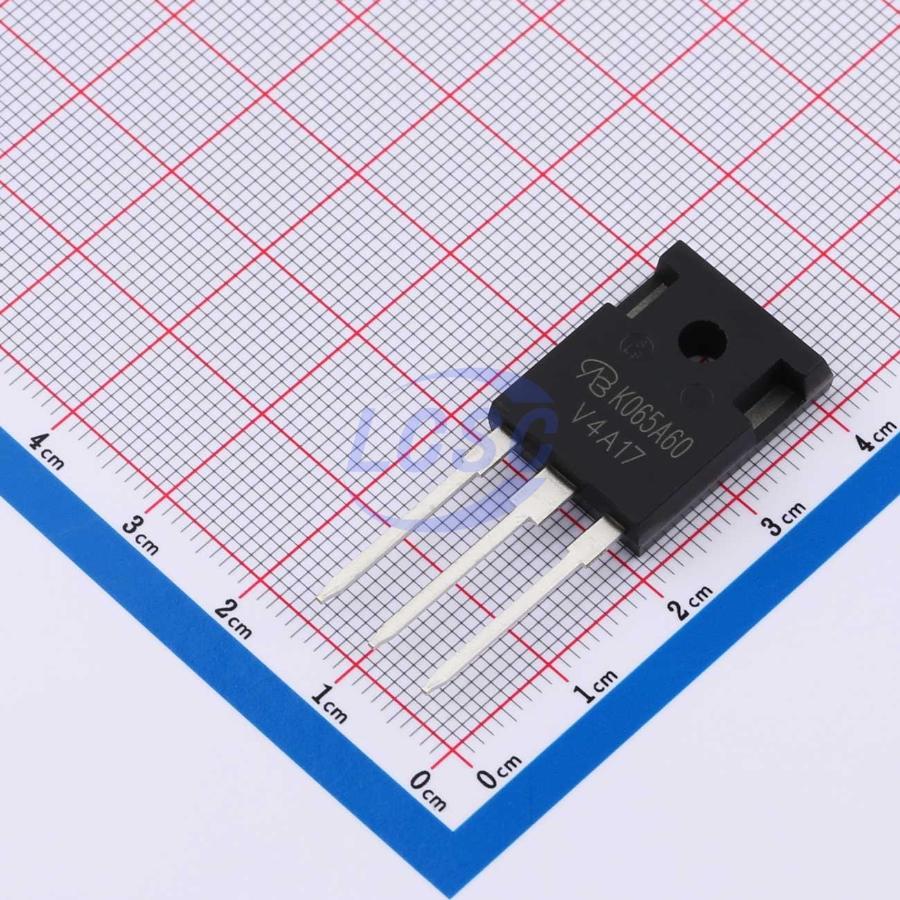

AOK065A60-VB
N-Channel 600V 47A 510W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 600V 47A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOK065A60-VB
- Store part #
- C22357095
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357095
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹729.73 | ₹729.73 |
| 10+ | ₹627.01 | ₹6,270.10 |
| 30+ | ₹564.42 | ₹16,932.60 |
| 100+ | ₹511.91 | ₹51,191.00 |
1 × ₹729.73
₹729.73
excl. GST
₹861.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOK065A60-VB
₹729.73 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 47A
- Ciss-Input Capacitance
- 4.9nF
- Pd - Power Dissipation
- 510W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 213nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 14 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FCH072N60-VB#C22357097VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹729.73 · 5 in stock | View |
 | SPW47N60C3-VB#C22357100VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 1 | ₹691.92 · 1 in stock | View |
 | TK39N60W5-VB#C22357104VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 1 | ₹729.73 · 1 in stock | View |
 | SiHG47N60E-VB#C22357091VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹729.73 · 5 in stock | View |
 | FCH070N60E-VB#C22357092VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹729.73 · 5 in stock | View |
