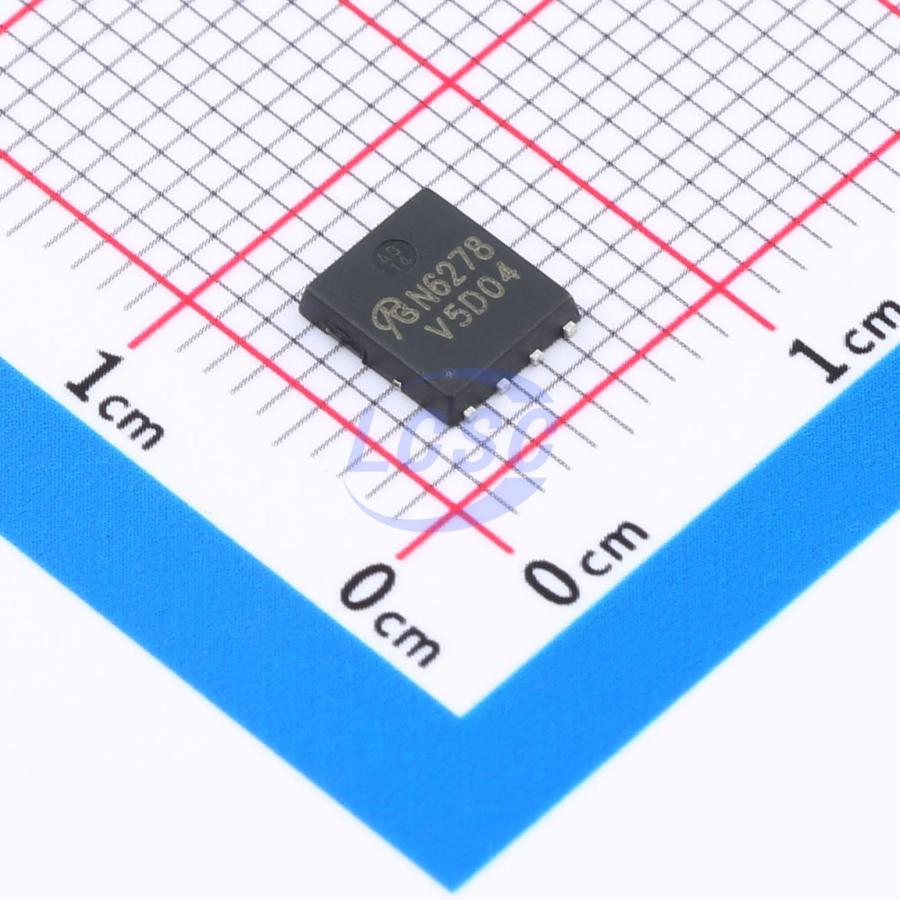

aon6278-VB
N-Channel 85V 80A Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 85V 80A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- aon6278-VB
- Store part #
- C47993969
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993969
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.88 | ₹192.88 |
| 10+ | ₹165.23 | ₹1,652.30 |
| 30+ | ₹151.30 | ₹4,539.00 |
| 100+ | ₹137.59 | ₹13,759.00 |
| 500+ | ₹84.25 | ₹42,125.00 |
| 1,000+ | ₹80.12 | ₹80,120.00 |
1 × ₹192.88
₹192.88
excl. GST
₹227.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
aon6278-VB
₹192.88 for 1 + GST
Specifications
- Drain to Source Voltage
- 85V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 4.2nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 12mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 92nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
Key features
- Junction temperature 150°C
- SGT technology power MOSFET
- RoHS compliant
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STL105N8F7AG-VB#C47993731VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹164.07 · 10 in stock | View |
 | STL100N8F7-VB#C47993732VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹192.88 · 10 in stock | View |
 | VBGQA1805#C47993659VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹164.07 · 10 in stock | View |
 | STL125N8F7AG-VB#C47993728VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹164.07 · 10 in stock | View |
 | STL130N8F7-VB#C47993963VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 5 | ₹170.02 · 5 in stock | View |
