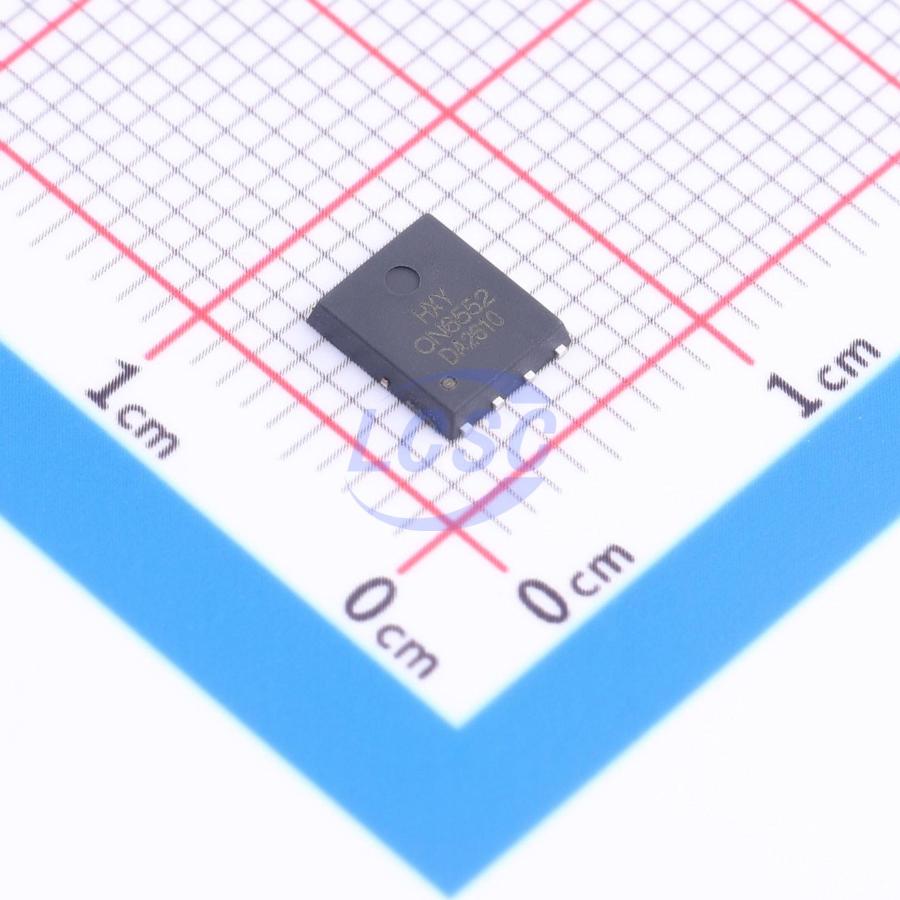

HXY MOSFETDatasheet (PDF)
AON6552
30V 60A 30W 4.4mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AON6552
- Store part #
- C54582691
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C54582691
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.02 | ₹66.02 |
| 10+ | ₹52.31 | ₹523.10 |
| 30+ | ₹46.52 | ₹1,395.60 |
| 100+ | ₹39.23 | ₹3,923.00 |
| 500+ | ₹36.01 | ₹18,005.00 |
| 1,000+ | ₹33.87 | ₹33,870.00 |
1 × ₹66.02
₹66.02
excl. GST
₹77.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AON6552
₹66.02 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 60A
- Output Capacitance(Coss)
- 498pF
- Ciss-Input Capacitance
- 814pF
- Pd - Power Dissipation
- 30W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 4.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.164 g
Overview
The AON6552 utilizes advanced SGT MOSFET technology to deliver low on-resistance (RDS(ON)), low gate charge, fast switching, and excellent avalanche characteristics. The device is specifically designed for enhanced durability and versatility.
Applications
- Consumer electronics power supply, motor control, synchronous rectification, isolated DC synchronous rectification applications
Key features
- VDS = 30V, ID = 60A
- RDS(ON) < 5.8mΩ (at VGS = 10V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AON6576-HXY#C22367000HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 355 | ₹26.67 · 355 in stock | View |
 | NTMFS4939N-HXY#C22367001HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 125 | ₹39.57 · 125 in stock | View |
 | SM95N03AD1RL-HXY#C22367003HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 135 | ₹28.78 · 135 in stock | View |
 | FDMS0312AS-HXY#C22367004HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 495 | ₹44.57 · 495 in stock | View |
 | NTMFS4C09NT1G-HXY#C48996326HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 80 | ₹76.24 · 80 in stock | View |
