HXY MOSFETDatasheet (PDF)

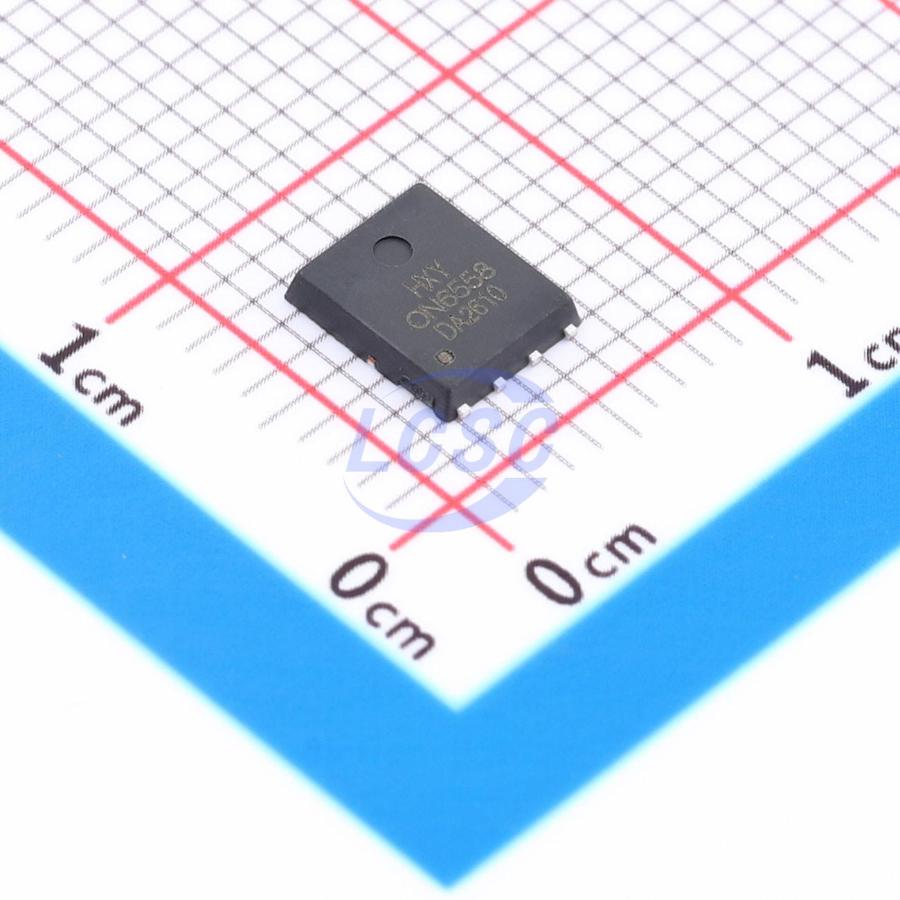

AON6558
30V 60A 30W 4.4mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AON6558
- Store part #
- C54582692
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C54582692
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.25 | ₹196.25 |
| 50+ | ₹31.45 | ₹1,572.50 |
| 150+ | ₹28.09 | ₹4,213.50 |
| 500+ | ₹23.92 | ₹11,960.00 |
| 2,500+ | ₹19.73 | ₹49,325.00 |
| 5,000+ | ₹18.61 | ₹93,050.00 |
5 × ₹39.25
₹196.25
excl. GST
₹231.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AON6558
₹196.25 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 60A
- Output Capacitance(Coss)
- 498pF
- Ciss-Input Capacitance
- 814pF
- Pd - Power Dissipation
- 30W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 4.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.176 g
Overview
The AON6558 utilizes advanced SGT MOSFET technology to deliver low on-resistance (RDS(ON)), low gate charge, fast switching, and excellent avalanche characteristics. The device is specifically designed for enhanced durability and versatility.
Applications
- Consumer electronics power supply, motor control, synchronous rectification, isolated DC synchronous rectification applications
Key features
- VDS = 30V, ID = 60A
- RDS(ON) < 5.8mΩ (at VGS = 10V)
