VBsemi ElecDatasheet (PDF)

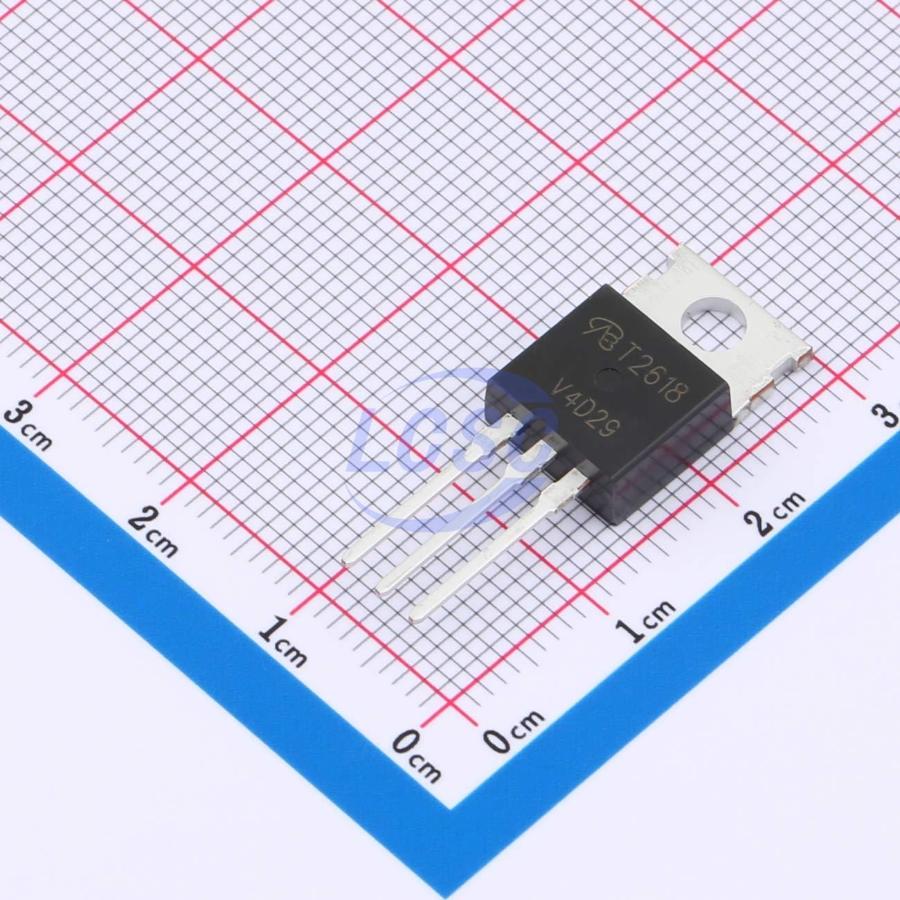

AOT2618L-VB
60V 60A 136W 13mΩ@4.5V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs
TO-220ABRoHSActive
MOSFET N-CH 60V 60A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOT2618L-VB
- Store part #
- C22389367
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22389367
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.78 | ₹137.78 |
| 10+ | ₹117.34 | ₹1,173.40 |
| 50+ | ₹87.83 | ₹4,391.50 |
| 100+ | ₹77.73 | ₹7,773.00 |
| 500+ | ₹71.69 | ₹35,845.00 |
| 1,000+ | ₹68.47 | ₹68,470.00 |
1 × ₹137.78
₹137.78
excl. GST
₹162.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AOT2618L-VB
₹137.78 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 60A
- Output Capacitance(Coss)
- 570pF
- Ciss-Input Capacitance
- 4.2nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 325pF
- RDS(on)
- 13mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.12 g
Overview
Applications
- Mobile computing applications
- Load switch
- Notebook adapter switch
- DC/DC converter
Key features
- Junction temperature 175°C
- Trench power MOSFET
- N-channel MOSFET
- RoHS compliant
