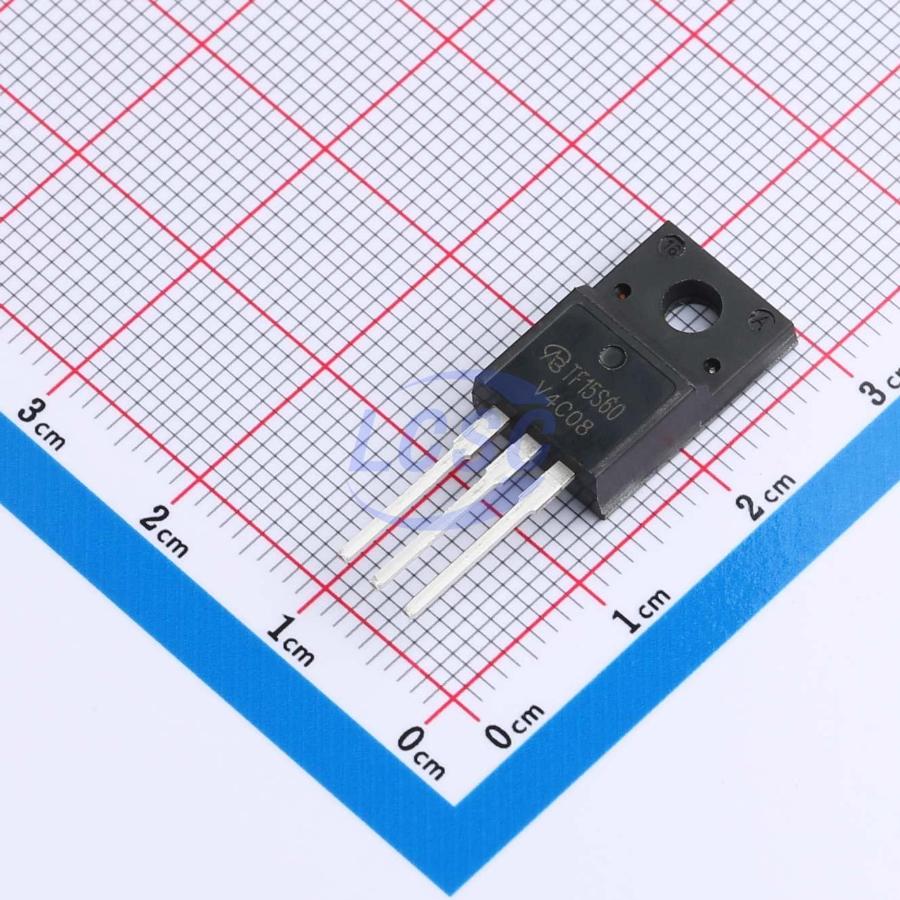

AOTF15S60-VB
N-Channel 650V 20A 200W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 20A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOTF15S60-VB
- Store part #
- C20755340
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C20755340
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹348.90 | ₹348.90 |
| 10+ | ₹295.33 | ₹2,953.30 |
| 50+ | ₹261.73 | ₹13,086.50 |
| 100+ | ₹227.28 | ₹22,728.00 |
| 500+ | ₹211.73 | ₹1,05,865.00 |
| 1,000+ | ₹205.01 | ₹2,05,010.00 |
1 × ₹348.90
₹348.90
excl. GST
₹411.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AOTF15S60-VB
₹348.90 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.322nF
- Pd - Power Dissipation
- 200W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 106nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.2 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
