VBsemi ElecDatasheet (PDF)

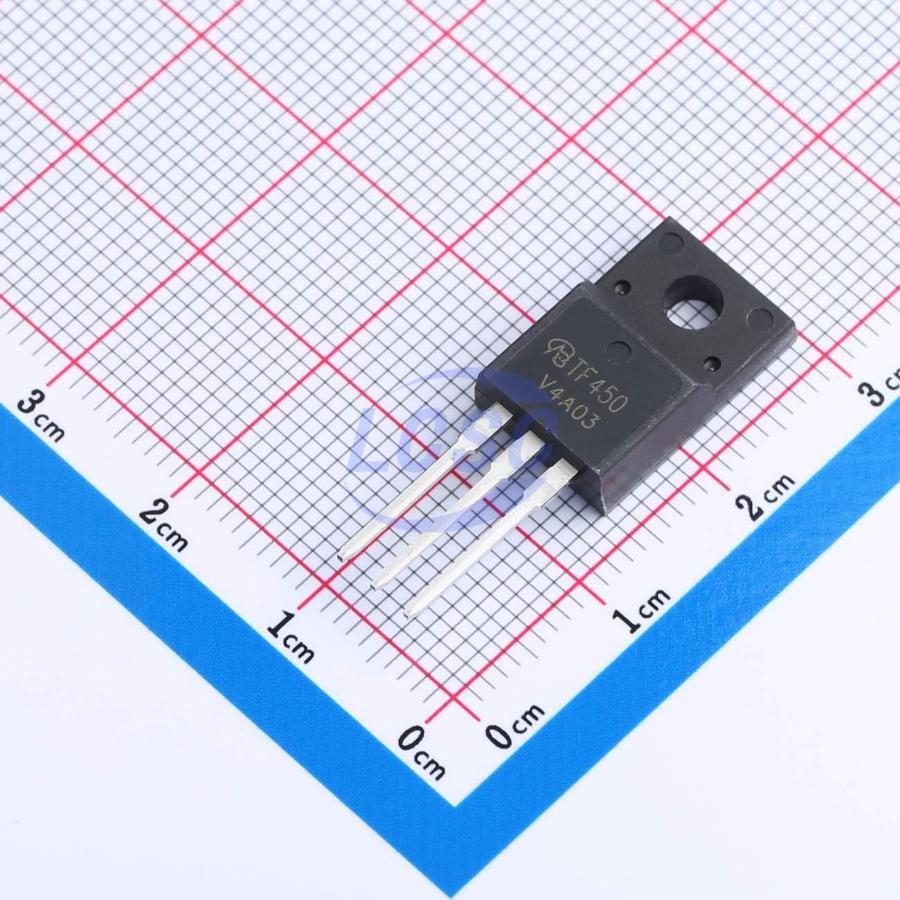

AOTF450L-VB
N-Channel 200V 10A 37W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 200V 10A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOTF450L-VB
- Store part #
- C20626318
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C20626318
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.14 | ₹107.14 |
| 10+ | ₹87.17 | ₹871.70 |
| 50+ | ₹77.09 | ₹3,854.50 |
| 100+ | ₹67.22 | ₹6,722.00 |
| 500+ | ₹61.14 | ₹30,570.00 |
| 1,000+ | ₹58.19 | ₹58,190.00 |
1 × ₹107.14
₹107.14
excl. GST
₹126.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AOTF450L-VB
₹107.14 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 260pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 560pF
- Pd - Power Dissipation
- 37W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 265mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.422 g
Overview
Key features
- Isolated Package
- High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
- Sink to Lead Creepage Distance = 4.8 mm
- 175 °C Operating Temperature
- Dynamic dV/dt Rating
- Low Thermal Resistance
- Lead (Pb)-free Available
