MSKSEMIDatasheet (PDF)

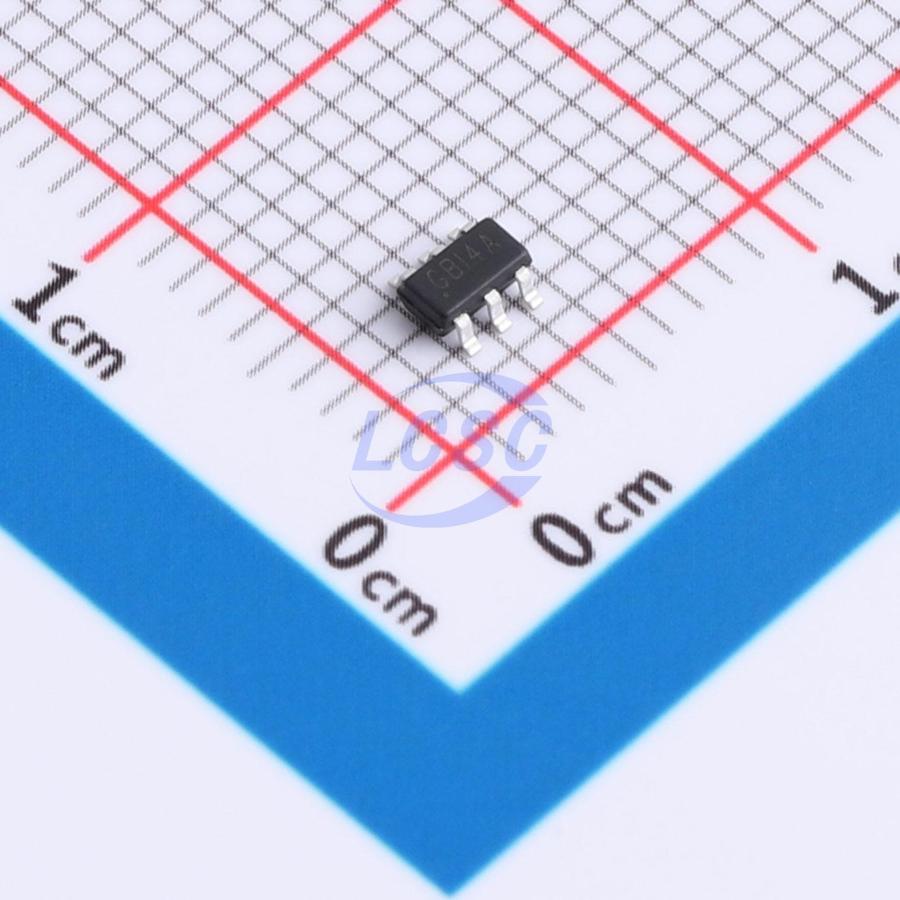

AOZ1280CI-MS
1.2MHz~1.6MHz Step-down type Adjustable 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- AOZ1280CI-MS
- Store part #
- C52988840
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,060 in stock
#C52988840
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.14 | ₹175.70 |
| 50+ | ₹27.84 | ₹1,392.00 |
| 150+ | ₹24.71 | ₹3,706.50 |
| 500+ | ₹20.80 | ₹10,400.00 |
| 3,000+ | ₹19.06 | ₹57,180.00 |
| 6,000+ | ₹18.02 | ₹1,08,120.00 |
5 × ₹35.14
₹175.70
excl. GST
₹207.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AOZ1280CI-MS
₹175.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz~1.6MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
AOZ1280CI-MS is a high-frequency, synchronous rectification, step-down switching mode converter with integrated power MOSFETs. It provides a compact solution over a wide input supply voltage range, capable of delivering 1.5A peak output current with excellent load and line regulation. The device requires minimal external standard components and is available in a space-saving SOT-23-6 package.
Applications
- CCTV cameras
- Flat panel TVs and displays
- Battery chargers
- Distributed power systems
Key features
- Wide input voltage range: 4V to 30V
- 1.2A continuous output current
- 1.4MHz switching frequency
- Short-circuit protection with hiccup mode
- Built-in overcurrent limiting
- Built-in overvoltage protection
- Forced PWM mode
- Internal soft-start
- 200mΩ/150mΩ low RDS(ON) internal power MOSFETs
- Output voltage adjustable from 0.8V
- No Schottky diode required
- Integrated internal compensation
- Thermal shutdown
- SOT23-6 package
- Operating temperature range: -40°C to +85°C
