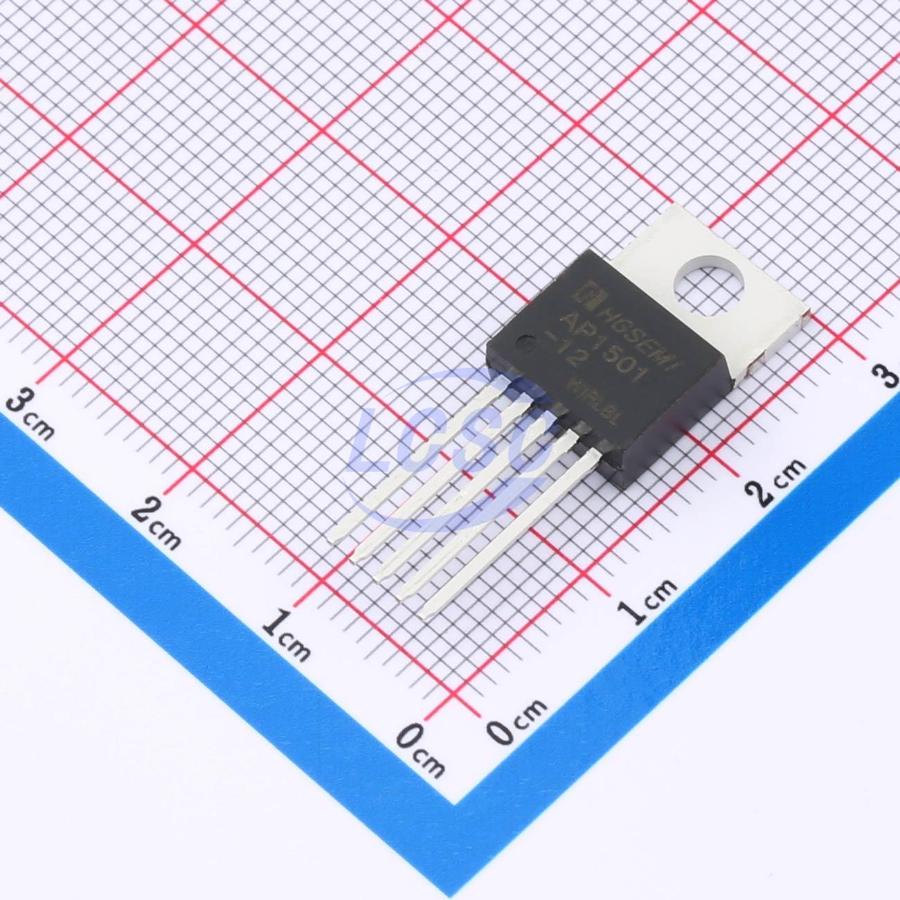

AP1501T-12/HG
Switching Regulator IC Fixed 12V 3A TO-220-5
TO-220-5RoHSActive
3A 150KHz 40V DC-DC voltage regulator circuit
- Manufacturer
- HGSEMI
- Manufacturer part #
- AP1501T-12/HG
- Store part #
- C47411540
- Package / case
- TO-220-5
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
990 in stock
#C47411540
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.06 | ₹57.06 |
| 10+ | ₹50.60 | ₹506.00 |
| 50+ | ₹47.38 | ₹2,369.00 |
| 100+ | ₹44.15 | ₹4,415.00 |
| 500+ | ₹42.20 | ₹21,100.00 |
| 1,000+ | ₹41.34 | ₹41,340.00 |
1 × ₹57.06
₹57.06
excl. GST
₹67.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AP1501T-12/HG
₹57.06 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Number of Outputs
- 1
- Frequency - Switching
- 150kHz
- Features
- Overcurrent Protection
- Output Type
- Fixed
- Operating Voltage
- 5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 12V
- Output Current
- 3A
- Quiescent Current
- 2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.879 g
Overview
AP1501 is a 150KHz fixed-frequency PWM DC-DC switching regulator. It features 3A output current drive capability, high efficiency, low ripple, and excellent line and load regulation. The device operates in PWM modulation mode, enabling linear duty cycle adjustment from 0 to 100%. AP1501 integrates a fixed-frequency oscillator and frequency compensation module, simplifying peripheral circuit design with minimal external components. Additional features include enable control with hysteresis, over-temperature protection, overcurrent protection, and secondary overcurrent protection. When secondary overcurrent protection is triggered, the built-in frequency reduction function decreases the operating frequency from 150KHz to 50KHz.
Applications
- LCD monitors
- LCD TVs
- Digital photo frames
- TV set-top boxes
- Modems
Key features
- Wide input voltage range: 4.5V to 40V
- Fixed output voltage options: 3.3V, 5V, 12V; adjustable version: 1.23V to 37V
- Duty cycle adjustable range: 0 ~ 100%
- Minimum saturation voltage drop: 1.5V
- Fixed switching frequency: 150KHz
- Fixed output current capability: 3A
- Enable hysteresis switching function
- Built-in over-temperature protection and over-current protection
- Built-in frequency compensation
- High efficiency, high line regulation, and load regulation
