Wuxi Chipown Micro-electronicsDatasheet (PDF)

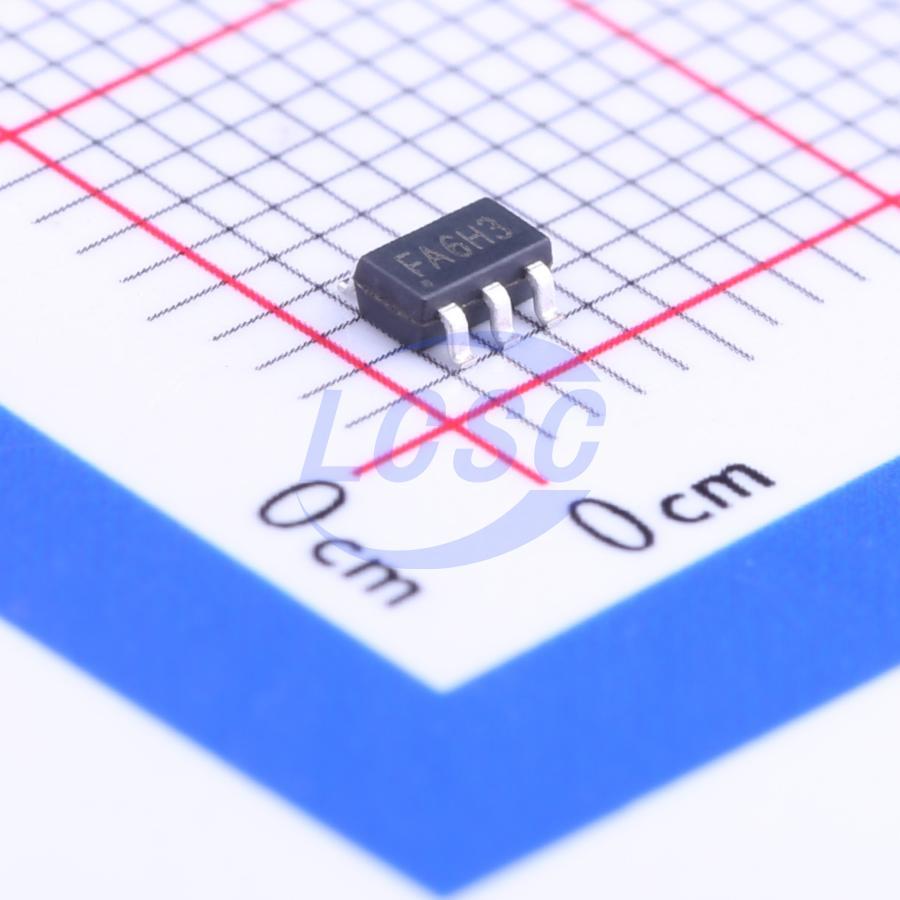

AP2000ATCER
Boost Switching Regulator IC Adjustable 2.5V~5V 1 Output SOT-23-6L
SOT-23-6LROHS CompliantActive
1.0MHz High Efficiency Synchronous Boost Converter
- Manufacturer
- Wuxi Chipown Micro-electronics
- Manufacturer part #
- AP2000ATCER
- Store part #
- C130337
- Package / case
- SOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,205 in stock
#C130337
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.23 | ₹101.15 |
| 50+ | ₹15.86 | ₹793.00 |
| 150+ | ₹13.98 | ₹2,097.00 |
| 500+ | ₹11.64 | ₹5,820.00 |
| 3,000+ | ₹10.61 | ₹31,830.00 |
| 6,000+ | ₹9.98 | ₹59,880.00 |
5 × ₹20.23
₹101.15
excl. GST
₹119.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2000ATCER
₹101.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 750mV~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~5V
- Output Current
- 100mA
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
AP2000A is a 1.0MHz fixed switching frequency, high-efficiency synchronous boost converter. It can generate 3.3V from a single AA/AAA battery and deliver over 100mA of output current. The device integrates an internal NMOS main switch and PMOS synchronous rectifier. The 1.0MHz switching frequency enables the use of miniaturized inductors and ceramic capacitors, reducing overall solution size. Current-mode PWM with internal compensation minimizes external component count and improves transient response. In shutdown mode, the AP2000A quiescent current drops below 1uA. Available in a 6-pin SOT-23 flat package, with both fixed and adjustable output voltage versions.
Applications
- Mobile phones and smartphones
- Microprocessor and DSP core power supply
- Wireless and DSL modems
- MP3 players
- Digital cameras and camcorders
- Portable devices
Key features
- High efficiency: up to 92%
- 1.0MHz fixed switching frequency
- AA battery output: 3.3V & Iout = 100mA
- Li-ion battery output: 5.0V & Iout = 500mA
- Low startup voltage: 0.85V
- Integrated switch and rectifier, no Schottky diode required
- Output voltage: 2.5V ~ 5.0V
- Shutdown current: less than 1μA
- Miniaturized peripheral components
- Space-saving SOT-23-6L package
