TECH PUBLICDatasheet (PDF)

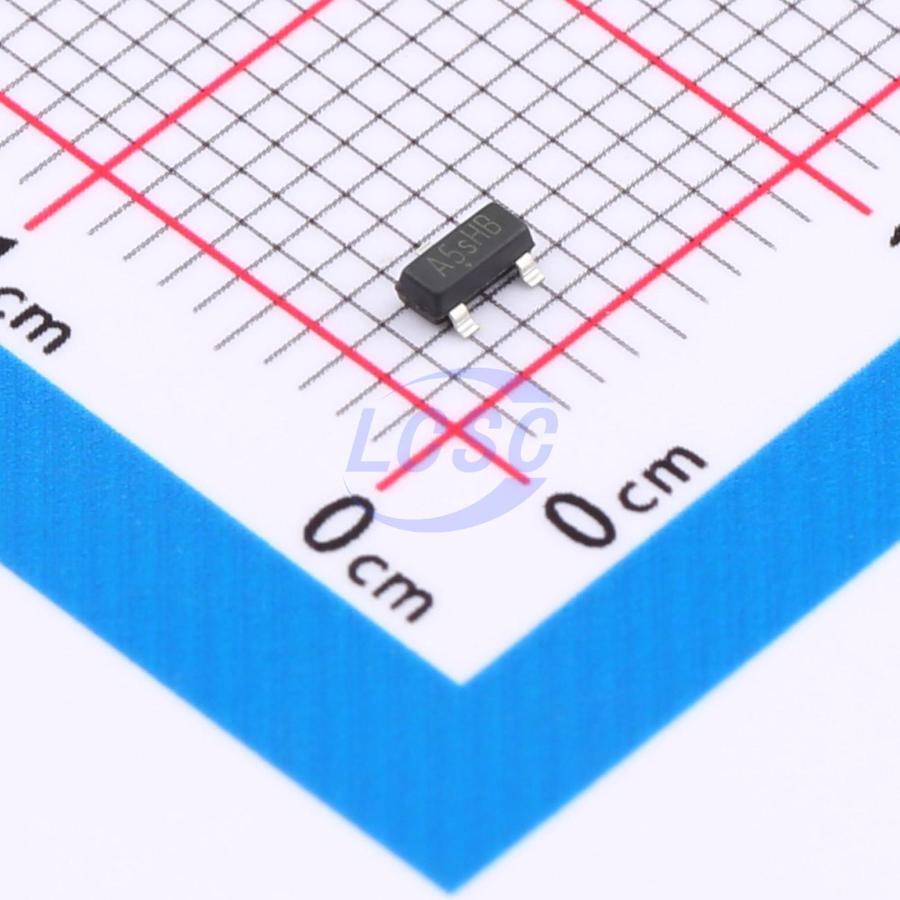

AP2305GN-TP
P-Channel 20V 5A 1W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET P-CH 20V 5A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AP2305GN-TP
- Store part #
- C41407554
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C41407554
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.39 | ₹83.90 |
| 100+ | ₹6.67 | ₹667.00 |
| 300+ | ₹5.81 | ₹1,743.00 |
| 3,000+ | ₹5.17 | ₹15,510.00 |
| 6,000+ | ₹4.66 | ₹27,960.00 |
| 9,000+ | ₹4.39 | ₹39,510.00 |
10 × ₹8.39
₹83.90
excl. GST
₹99.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2305GN-TP
₹83.90 for 10 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 132pF
- Current - Continuous Drain(Id)
- 5A
- Ciss-Input Capacitance
- 830pF
- Pd - Power Dissipation
- 1W
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 110mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 8.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Applications
- DC/DC Converter
- Portable equipment and battery Load Switch
Key features
- VDs = -20V, ΔD = -5A
- RDS(ON) typ. = 32mΩ @ VGs = -4.5V
- RDS(ON) typ. = 41mΩ @ VGs = -2.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2305DS#C41408032TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 4,540 | ₹8.65 · 4,540 in stock | View |
 | SI2333DS#C5122042TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 6,415 | ₹18.64 · 6,415 in stock | View |
 | TPM20P7S3L-1#C5125995TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,425 | ₹16.05 · 1,425 in stock | View |
 | SI2369DS#C41348108TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 1,530 | ₹12.73 · 1,530 in stock | View |
 | SI2393DS#C41348109TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 4,345 | ₹10.19 · 4,345 in stock | View |
