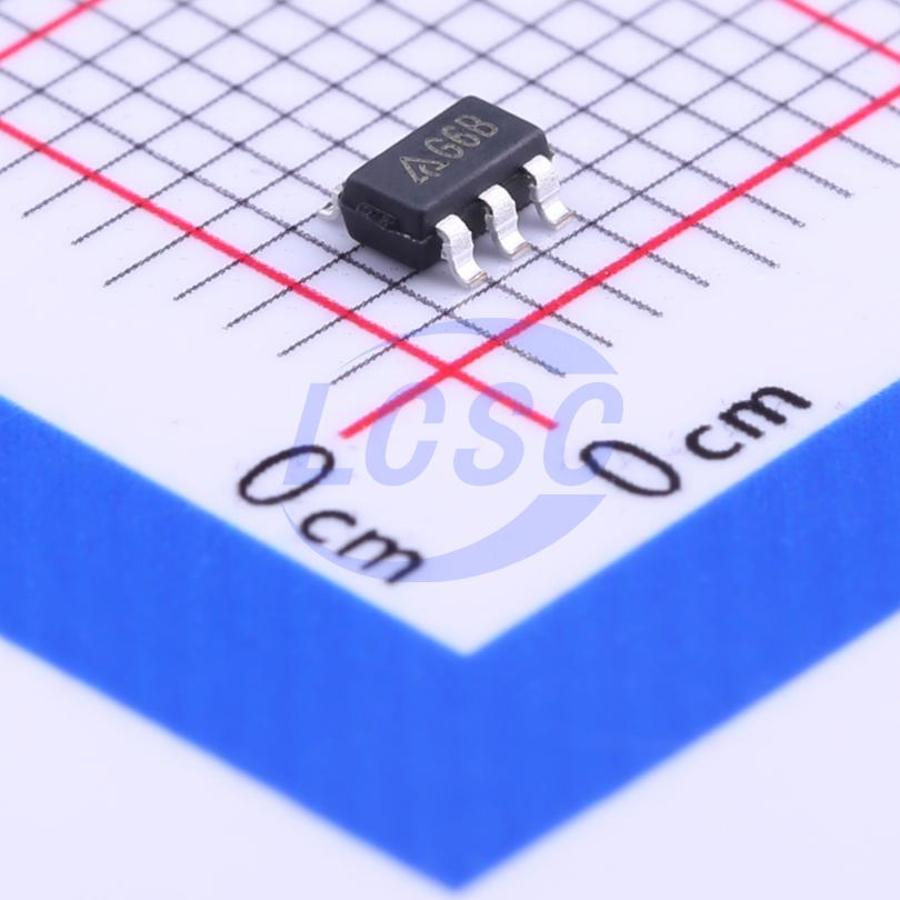

AP3012KTR-G1
1.5MHz Boost Adjustable 1.25V~29V 500mA SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
PopularSOT-23-5ROHS3 CompliantActive
1.5MHz Boost DC-DC Converter
- Manufacturer
- DIODES
- Manufacturer part #
- AP3012KTR-G1
- Store part #
- C102618
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,245 in stock
#C102618
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.55 | ₹142.75 |
| 50+ | ₹23.27 | ₹1,163.50 |
| 150+ | ₹21.01 | ₹3,151.50 |
| 500+ | ₹18.19 | ₹9,095.00 |
| 3,000+ | ₹15.02 | ₹45,060.00 |
| 6,000+ | ₹14.26 | ₹85,560.00 |
5 × ₹28.55
₹142.75
excl. GST
₹168.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP3012KTR-G1
₹142.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.5MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.6V~16V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~29V
- Output Current
- 500mA
- Quiescent Current
- 2.5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
The AP3012 is a high power, constant frequency, current mode PWM, inductor based, step-up (boost) converter. The converter operates at high frequency (1.5MHz) so that a small, low profile inductor can be used. The AP3012 has built-in overvoltage protection (OVP) to allow the device goes into shutdown mode when the output voltage exceeds the OVP threshold of 29V. The AP3012 is available in standard SOT-23-5 package.
Applications
- LCD/OLED Display Bias Supply
- White LED Driver for LCD Display Backlights
- Cellular Phones
Key features
- High Efficiency up to 81%
- Adjustable Output Voltage up to 29V
- Shutdown Current 1μA Typical
- 1.5MHz Switching Frequency
- 36V 500mA Rugged Integrated Bipolar Switch
- Built-in Soft-start to Reduce Inrush Current During Start-up
- On-chip Overvoltage Protection
- Uses Low ESR Ceramic Output Capacitor
- Uses Small Inductor
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP3012KTR-E1#C460356DIODES · SOT-23-5 | DIODES | SOT-23-5 | 52,710 | ₹28.42 · 52,710 in stock | View |
