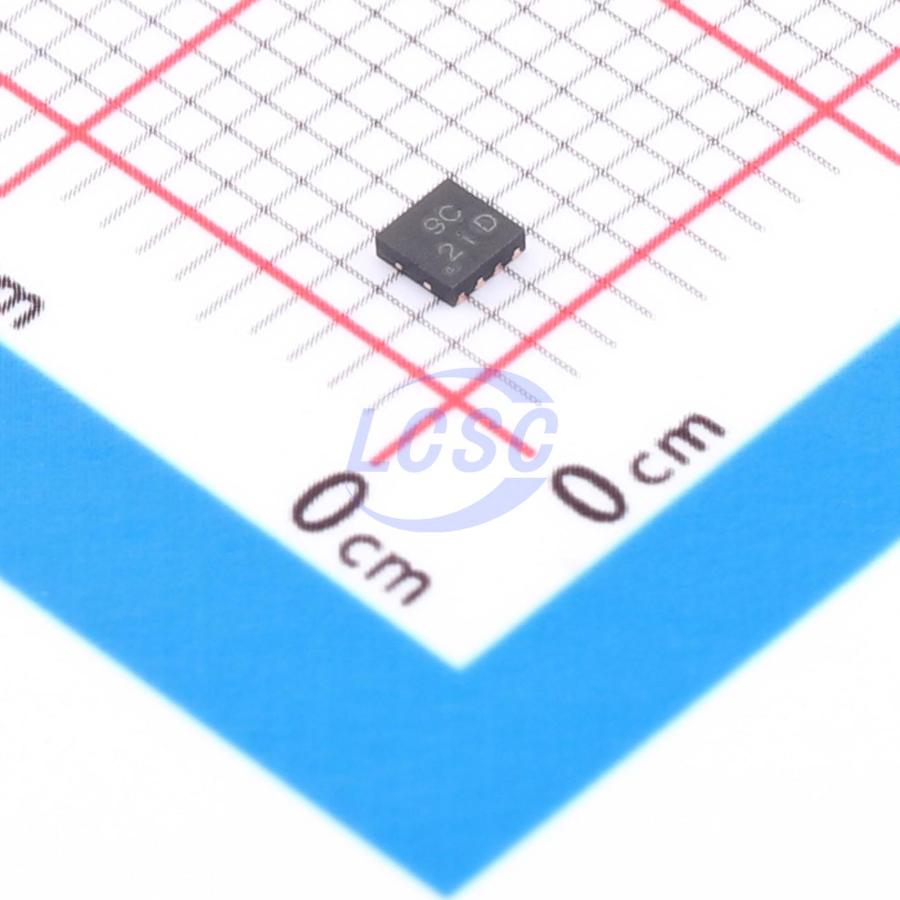

AP3441LSHE-7B

The AP3441 and AP3441L are 3A step-down DC-DC converters. At heavy load, the constant-frequency PWM control performs excellent stability and transient response. No external compensation components are required. The AP3441/1 supports a range of input voltages from 2.7V to 5.5V allowing the use of a single Li+/Li-polymer cell, multiple Alkaline/NiMH cell, and other standard power sources. The output voltage is adjustable from 0.6V to the input voltage. The AP3441/L employs internal power switch and synchronous rectifier to minimize external part count and realize high efficiency. During shutdown, the input is disconnected from the output and the shutdown current is less than 1μA. Other key features include over-temperature and short circuit protection, and under-voltage lockout to prevent deep battery discharge. The AP3441/L delivers 3A maximum output current while consuming only 55μA of no-load quiescent current. Ultra-low RDS(ON) integrated MOSFETs and 100% duty cycle operation make the AP3441/L an ideal choice for high output voltage, high current applications which require a low dropout threshold. Pulse skip mode to maintain high efficiency at light-load conditions. The AP3441/L is available in U-DFN2020-8 (Type E) package.

Applications

• Post DC-DC Voltage Regulation
• Set Top Boxes
• Notebook Computer
• PAD

Key features

• Input Voltage: 2.7V to 5.5V
• Output Voltage: 0.6V to VIN
• 0.6V Reference Voltage with ±1.5% Precision
• 55μA (Typical) No Load Quiescent Current
• Shutdown Current: <1μA
• 100% Duty Cycle Operation
• 1MHz Switching Frequency
• No External Compensation Required
• Short Circuit Protection: AP3441L: Latch Off Protection; AP3441: Hiccup Mode Protection
• Over Voltage Protection: AP3441L: Latch Off Protection; AP3441: Non Latch Off Protection
• Thermal Shutdown
• U-DFN2020-8 (Type E) Package
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
