VBsemi ElecDatasheet (PDF)

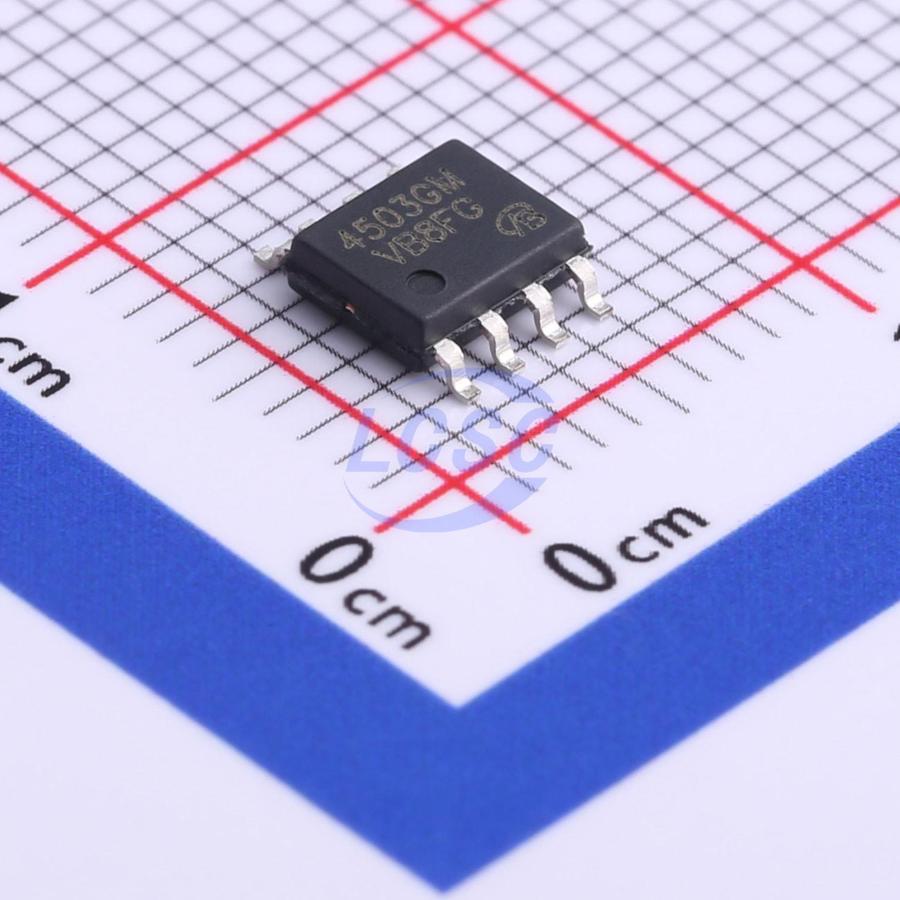

AP4503GM-VB
30V 6.8A 1.28W 1 N-Channel + 1 P-Channel N-Channel + P-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
MOSFET N/P-CH 30V 6.8A SOP-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP4503GM-VB
- Store part #
- C693173
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C693173
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.84 | ₹61.84 |
| 10+ | ₹50.51 | ₹505.10 |
| 30+ | ₹45.50 | ₹1,365.00 |
| 100+ | ₹39.62 | ₹3,962.00 |
| 500+ | ₹29.83 | ₹14,915.00 |
| 1,000+ | ₹28.09 | ₹28,090.00 |
1 × ₹61.84
₹61.84
excl. GST
₹72.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AP4503GM-VB
₹61.84 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 95pF;115pF
- Current - Continuous Drain(Id)
- 6.8A
- Ciss-Input Capacitance
- 510pF
- Pd - Power Dissipation
- 1.28W
- Reverse Transfer Capacitance (Crss)
- 33pF
- RDS(on)
- 18mΩ@10V;40mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 5.8nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.138 g
Overview
Applications
- Motor drive
- Power bank
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STM8362&-30V-VB#C558290VBsemi Elec · SOP-8 | VBsemi Elec | SOP-8 | 13 | ₹53.95 · 13 in stock | View |
 | C3028LD-VB#C709927VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 19 | ₹52.73 · 19 in stock | View |
 | FDS8333C-NL-VB#C7463644VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹56.53 · 15 in stock | View |
 | APM4550KC-TRL-VB#C5444623VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 24 | ₹52.10 · 24 in stock | View |
 | AO4614&-30-VB#C693088VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 73 | ₹53.14 · 73 in stock | View |
