AP5100WG-7
1.4MHz Step-down type Adjustable 810mV~15V 1.2A SOT-26 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-26ROHS CompliantActive

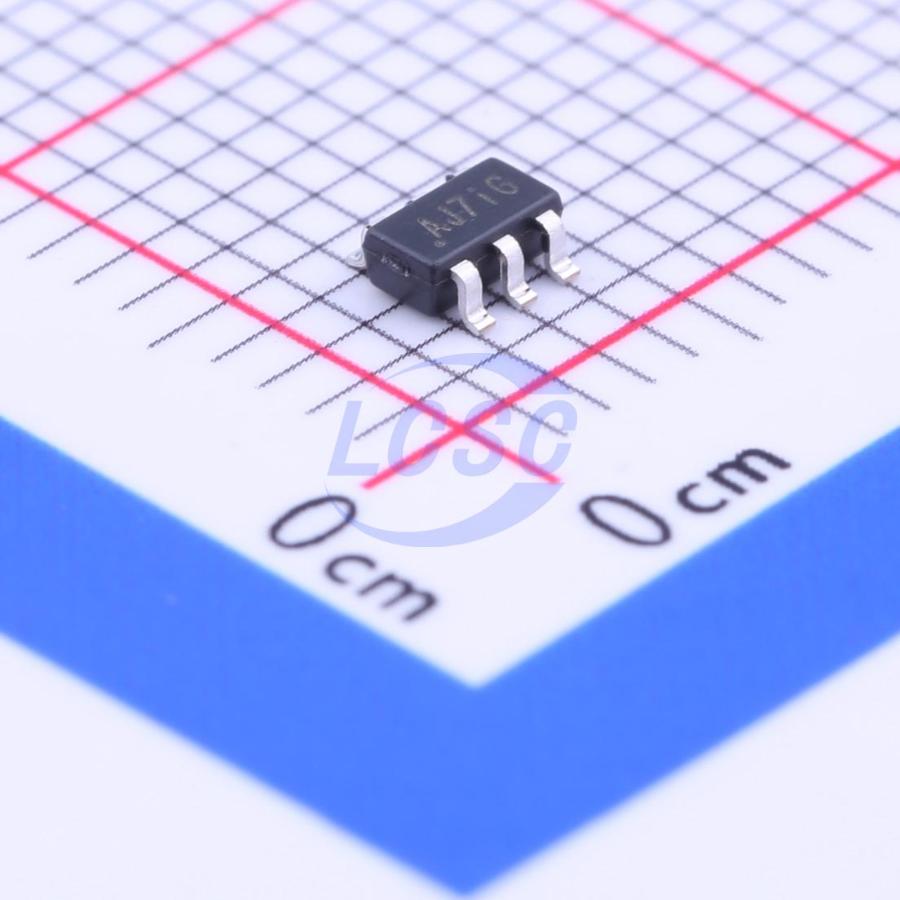

1.2A Step-Down Converter with 1.4MHz Switching Frequency
- Manufacturer
- DIODES
- Manufacturer part #
- AP5100WG-7
- Store part #
- C114647
- Package / case
- SOT-26
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,180 in stock
#C114647
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.59 | ₹242.95 |
| 50+ | ₹38.29 | ₹1,914.50 |
| 150+ | ₹33.87 | ₹5,080.50 |
| 500+ | ₹28.37 | ₹14,185.00 |
| 3,000+ | ₹25.60 | ₹76,800.00 |
| 6,000+ | ₹24.13 | ₹1,44,780.00 |
5 × ₹48.59
₹242.95
excl. GST
₹286.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP5100WG-7
₹242.95 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Frequency - Switching
- 1.4MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.75V~24V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 810mV~15V
- Output Current
- 1.2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
The AP5100 is a current mode step-down converter with a built-in power MOSFET to enable smallest solution size power conversion. With the low series resistance power switch it enables a constant output current of up to 1.2A over a wide input supply range. The load and line regulation has excellent response time over the operating input voltage and temperature range. The AP5100 is self protected, through a cycle-by-cycle current limiting algorithm and an on chip thermal protection.
Applications
- Distributed Power Systems
- Battery Charger
- Pre-Regulator for Linear Regulators
- WLED Drivers
Key features
- VIN 4.75V to 24V
- Load current of up to 1.2A
- Internal Power MOSFET
- Stable with Low ESR Ceramic Output Capacitors
- Up to 90% Efficiency
- 0.1μA Shutdown Mode
- Fixed 1.4MHz Frequency
- Thermal Shutdown
- Cycle-by-Cycle Over Current Protection
- Resistor divider adjustable Output: 0.81V to 15V
- SOT26: Available in “Green” Molding Compound (No Br, Sb) Lead Free Finish/RoHS Compliant
