VBsemi ElecDatasheet (PDF)

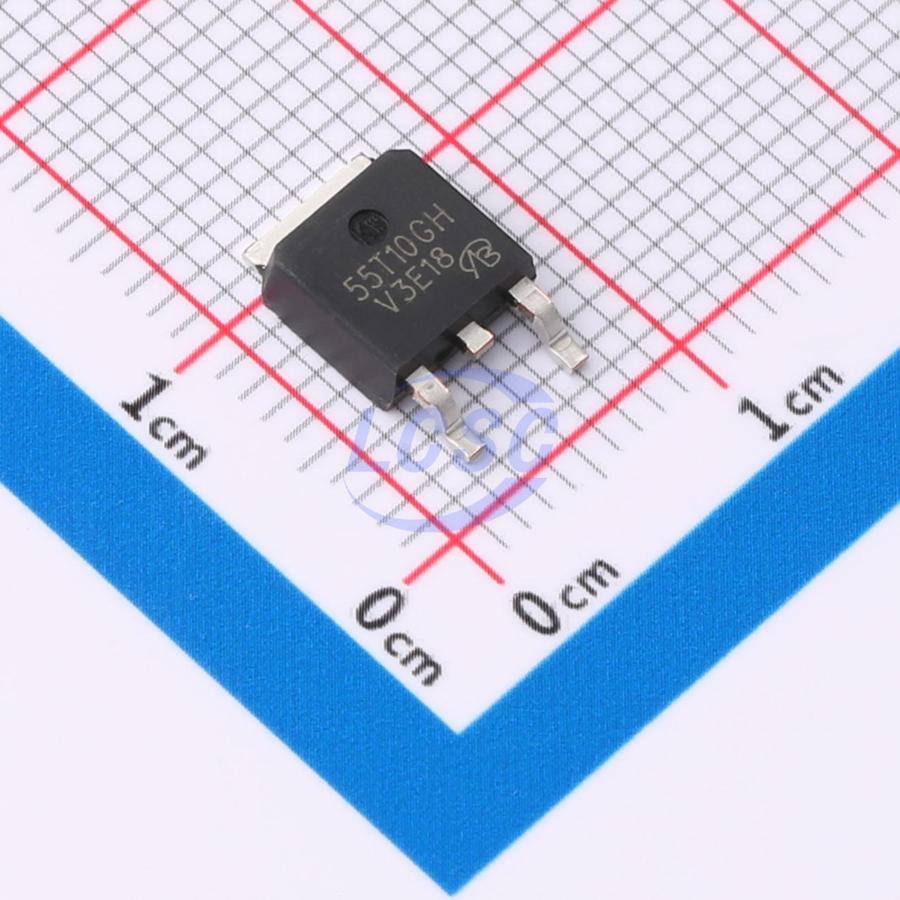

AP55T10GH-HF-VB
N-Channel 100V 45A 136.4W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 45A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP55T10GH-HF-VB
- Store part #
- C7463615
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
56 in stock
#C7463615
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹118.37 | ₹118.37 |
| 10+ | ₹95.61 | ₹956.10 |
| 30+ | ₹84.04 | ₹2,521.20 |
| 100+ | ₹72.86 | ₹7,286.00 |
| 500+ | ₹64.88 | ₹32,440.00 |
| 1,000+ | ₹61.48 | ₹61,480.00 |
1 × ₹118.37
₹118.37
excl. GST
₹139.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AP55T10GH-HF-VB
₹118.37 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 230pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 2.4nF
- Pd - Power Dissipation
- 136.4W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 18.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.373 g
Overview
Applications
- Primary-side switch
- Isolated DC/DC converter
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
